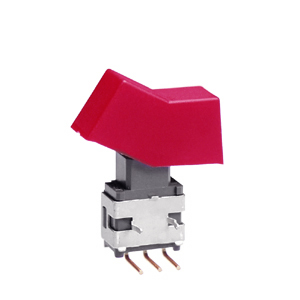

NKK Switches A12KHCG Sealed Miniature Rocker Switch
This advanced subminiature rocker switch is engineered for space-saving electronic applications, offering high reliability and durability. It features a sealed body construction to prevent contact contamination, ensuring consistent performance. Suitable for low-voltage, low-current logic-level circuits, it supports automated soldering and cleaning, reducing assembly time and costs. The switch's compact size, typically 0.510 inches in width, makes it ideal for modern, miniaturized devices, with available indicator options and various terminal configurations to suit diverse design requirements. Its resilient materials and environmental resistance ensure dependable operation even in challenging conditions.
NKK Switches A12KHCG Sealed Miniature Rocker Switch Specifications:
- Actuator Material: Polyamide
- Actuator Colors Available: Black, White, Red, Yellow, Green, Blue, Gray
- Terminals: PC Terminals, Straight or Right Angle, with optional brackets
- Size: 0.510 inches width (12.95mm), various configurations
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min at 500V DC
- Dielectric Strength: 500V AC at 1 minute minimum
- Mechanical Life: 100,000 operations minimum for ON-NONE-ON circuits
- Electrical Capacity: 0.4 VA max @ 28V AC/DC; 0.1mA to 0.1A @ 20mV to 28V
- Operating Temperature Range: -30°C to +85°C
- Humidity Resistance: 90-95% at 40°C for 240 hours
- Vibration Resistance: 10-55Hz with 1.5mm travel, 2 hours per axis
- Shock Resistance: 50G acceleration in multiple directions
- Mounting Precaution: Max PCB extension 0.051” (1.3mm) to ensure correct rocker movement
Buy the Buy NKK Process Sealed Subminiature Rockers Series A Online
Purchase the NKK Series A Sealed Miniature Rocker Switch online to benefit from its space-saving size, sealed construction for contamination protection, and high reliability in low-voltage electronic applications. Whether for consumer electronics, industrial control panels, or medical devices, this switch offers excellent durability and consistency. Easy to automate in assembly processes, it supports reliable soldering and cleaning. Search for this compact switch now to ensure your designs meet the highest standards of quality, safety, and performance in tight spaces.
Order your NKK Series A Process Sealed Subminiature Rockers today and ensure reliable operation in compact electronic devices with space-saving design.
Frequently Asked Questions
Where can I buy NKK Switches A12KHCG?
You can click on the BUY or RFQ button to purchase A12KHCG from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A12KHCG?
You can download the A12KHCG datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A12KHCG?
NKK Switches
