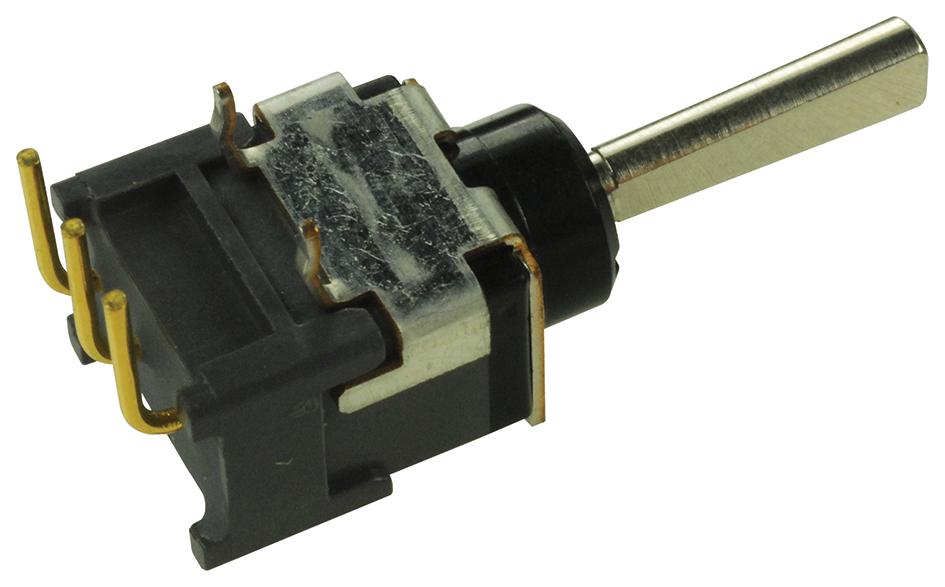

NKK Switches B13EH Subminiature Toggle Switch
The B13EH subminiature toggle switch is ideal for space-efficient PCB mounting in electronic devices. It features an antistatic, sealed construction to prevent contamination and static discharge, ensuring reliable signal switching. Designed for low-voltage, logic-level circuits, it offers a long mechanical life with high contact stability. The switch supports various circuit configurations, including SPDT and DPDT, with options for panel seal mounting and locking levers. Its compact size, insulating bushing, and corrosion-resistant finishes make it suitable for precise, durable control in advanced electronic equipment.
NKK Switches B13EH Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC min for 1 min
- Mechanical Life: 100,000 operations min
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 1.47N for long paddle toggle
- Contact Timing: Nonshorting, break-before-make
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz, amplitude 1.5mm for 1 min
- Shock: 50G acceleration in 6 directions
- Materials: Brass with nickel plating, polyamide, zinc alloy, nitrile rubber
- Mounting: PCB with support bracket recommended, panel seal mounting options
- Standards & Certifications: UL9AV-0, UL recognized in some configurations
- Dimensions: Small footprint supporting 2.54mm terminal spacing
- Construction: Totally sealed, epoxy sealed terminals, antistatic superstructure
Buy the NKK Series B Toggle: B13EH
Order the NKK B13EH subminiature toggle switch online now and enjoy the benefits of compact design, sealed construction, and high durability for your electronic projects. Perfect for PCB mounting in space-constrained environments, these switches provide reliable circuit switching with long-lasting performance. Whether for industrial equipment, consumer electronics, or control panels, this switch offers high contact stability, static discharge prevention, and easy installation. Enhance your designs with quality components that ensure consistent operation and protection against contamination. Purchase online today and optimize your electronic assemblies with confidence.
Get NKK B13EH toggle switch today—built for space-saving reliability in electronic control applications.
Frequently Asked Questions
Where can I buy NKK Switches B13EH?
You can click on the BUY or RFQ button to purchase B13EH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B13EH?
You can download the B13EH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B13EH?
NKK Switches
