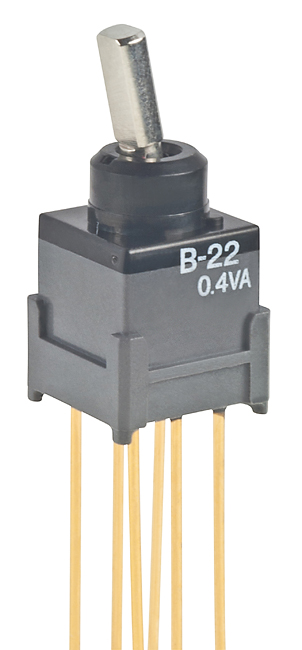

NKK Switches B22HW PCB Toggle Switch
The B22HW is a compact, subminiature toggle switch designed for PCB mounting in electronic devices. It features a sealed body construction to prevent contact contamination, making it ideal for space-constrained applications. This switch operates reliably with a simple toggle action, offering long mechanical and electrical life. Its design includes a locking lever option and optional panel seal mounting, meeting IP65 standards. Suitable for low-voltage, low-current logic circuits, it ensures safe, dependable switching for PCB-based systems with static discharge prevention and high contact stability.
NKK Switches B22HW PCB Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum at 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum at 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 100,000 operations minimum
- Nominal Operating Force: 1.47N (long paddle), 2.72N (short paddle), 0.59N (L toggle)
- Materials: Nickel plated brass, carbon blended polyamide, nitrile butadiene rubber, glass fiber reinforced polyamide, phosphor bronze, copper alloy
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours at 40°C
- Shock Resistance: 50G acceleration
- Vibration Resistance: 10-55Hz, amplitude 1.5mm
- Soldering: Wave soldering recommended, manual soldering possible
- Certifications: UL9AV-0, designed for low-voltage, logic-level circuits
