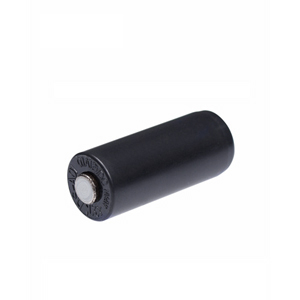

NKK Switches DSA01 Tilt Switch
A tilt switch used to detect the position or angle of an object by activating or deactivating a circuit when tilted beyond a specified angle. Suitable for various applications requiring orientation detection.
NKK Switches DSA01 Tilt Switch Specifications:
- Poles and Circuits: Single Pole Single Throw ON - OFF
- Operating Range: ON Angle = 10° ~ 170°; OFF Angle = 190° ~ 350°
- Resistive Load: 0.1A @ 12V DC
- Contact Resistance: 100 milliohms maximum
- Insulation Resistance: 50 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute minimum between terminals
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 100,000 operations minimum
- Housing: PBT
- Rubber Rings: Nitrile Butadiene Rubber
- Contact Balls: Brass with Silver Plating
- Terminals: Brass with Silver Plating
- Operating Temperature Range: -10°C ~ +70°C
- Storage Temperature Range: -25°C ~ +85°C
- Humidity: 90% for 96 hours @ 40°C
- Vibration: 10Hz ~ 500Hz, 2 hours
- Shock: 50G, 3 directions, 500,000 cycles
- Soldering: Wave, manual, or automated with profiles
- Size: Compact design with tailored dimensions for PCB mounting
Buy the NKK Series DS – Reliable Tilt Switch for Industrial Applications
Purchase the NKK Series DS tilt switch online today to ensure precise orientation detection for your industrial or automation systems. With robust construction, high reliability, and versatile mounting options, this tilt switch is designed for optimal performance across diverse environments. Its sealed body and durable materials guarantee long service life, even under harsh conditions. Enjoy quick online ordering, fast delivery, and the confidence of choosing a proven component for your safety and automation needs. Upgrade your system with ease today.
Buy NKK Series DS tilt switch now and experience unmatched reliability and precise object orientation detection in industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches DSA01?
You can click on the BUY or RFQ button to purchase DSA01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part DSA01?
You can download the DSA01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of DSA01?
NKK Switches
