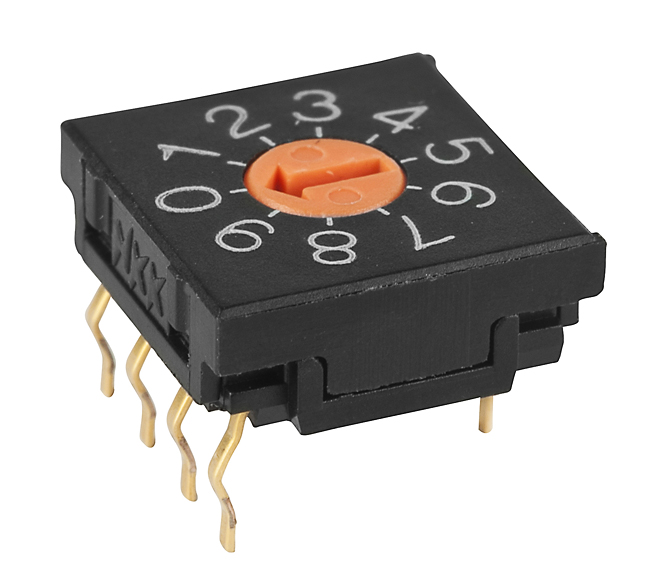

NKK Switches FR01FR10P 10mm DIP Rotary Switch
The FRO1 series 10mm DIP rotary switches are compact, reliable components designed for electronic configuration and selection. Featuring durable contact materials and gold plating for dependable performance, these switches support resistive loads of 100mA at 5V and 50V DC. They offer high insulation resistance of 1,000 megohms minimum, and dielectric strength of 250V AC for at least one minute. Designed for low-voltage circuits, the switches withstand environmental stresses including temperature ranges from 25°C to 85°C, humidity, vibration, and shock, making them ideal for space-constrained electronic assemblies.
NKK Switches FR01FR10P 10mm DIP Rotary Switch Specifications:
- Dimensions: 10mm DIP form factor with straight or right angle PC mounting options
- Electrical Capacity: 100mA @ 5V DC, 100mA @ 50V DC
- Contact Resistance: 100 milliohms maximum; 30 milliohms for contact point
- Insulation Resistance: Minimum 1,000 megohms @ 250V DC
- Dielectric Strength: 250V AC for 1 minute minimum
- Mechanical Life: 10,000 detent operations minimum
- Operating Temperature Range: -13°F through +185°F (-25°C to +85°C)
- Humidity Resistance: 90-95% humidity for 240 hours at 40°C
- Vibration Resistance: 10-55Hz with 1.5mm amplitude
- Shock Resistance: 50G acceleration
- Soldering: Wave soldering profile recommended, manual soldering permissible
- Housing & Base Material: Glass fiber reinforced polyamide (UL94V-0)
- Actuators: screwdriver, plastic shaft, dial, or metal shaft with gold plating
- Certifications: UL94V-0 rated actuator, housing, and base; intended for low-voltage, low-current circuits
Buy the NKK Series FRO1 10mm DIP Rotary Switch: FR01FR10P
Enhance your electronic design with the reliable and compact 10mm DIP rotary switch from the FRO1 series. Ideal for space-constrained applications, it features durable gold contacts and broad environmental resistance, supporting resistive loads up to 50V. Easy to mount with straight or right angle PC terminals, this switch offers high durability with 10,000 operations. Perfect for low-voltage control circuits, order online now for quick delivery and to give your projects consistent, trusted performance.
Order your NKK Series FRO1 10mm DIP Rotary Switch FR01FR10P today and ensure your electronic projects benefit from dependable, space-saving configuration options.
Frequently Asked Questions
Where can I buy NKK Switches FR01FR10P?
You can click on the BUY or RFQ button to purchase FR01FR10P from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part FR01FR10P?
You can download the FR01FR10P datasheet or visit the NKK Switches website for support.
Who is the manufacturer of FR01FR10P?
NKK Switches
