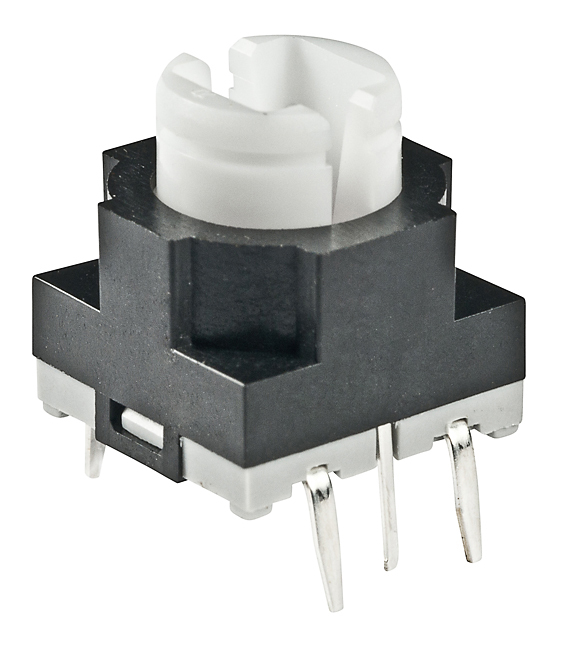

NKK Switches JB15HBPC Illuminated Tactile Switch
The JB15HBPC series is a low-profile illuminated tactile switch designed for printed circuit boards (PCBs). It features a sealed construction with rubber seals to prevent contact contamination and supports automated soldering and cleaning processes. The switch provides crisp tactile feedback with a dome contact, long operational life up to 5,000,000 cycles, and bright LEDs in red, green, or yellow for visual indication. Ideal for compact electronic devices requiring reliable tactile response with integrated illumination, ensuring durability and enhanced user interface design.
NKK Switches JB15HBPC Illuminated Tactile Switch Specifications:
- Electrical Capacity: 50mA @ 24V DC maximum for Standard Operating Force models, 125mA @ 24V DC maximum for High Operating Force models
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC minimum for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N for JB15L, 2.65N for JB1SHL & JB15HB
- Total Travel: 0.254mm (.010”) for short actuator, 0.300mm (.012”) for extended actuator
- Materials & Finishes: Actuator made of polyacetal or glass fiber reinforced PBT, case sealed with rubber, base of glass fiber reinforced polyamide, movable and stationary contacts of brass with silver plating, terminals of stainless steel and brass
- Environmental Data: Operating temperature range 25°C to +70°C, humidity 90-95% for 240 hours at 40°C, vibration 10-55Hz with peak-to-peak amplitude of 1.5mm, shock 50G
- Standards & Certifications: UL9V-0 rated case & base, designed for low-voltage, low-current circuits, not UL or CSA certified
Buy the Buy NKK Series JB Illuminated Low Profile Process Sealed Tactiles Part Number JB15HBPC Online
Get the reliable NKK Series JB15HBPC illuminated tactile switch online today to improve your electronic device interfaces. Featuring bright LED illumination in red, green, or yellow, along with a sealed design for contamination prevention, this switch offers long-lasting performance up to 5 million operations. Its compact profile makes it ideal for space-constrained applications requiring tactile feedback and visual indication. Easy to solder via wave or manual processes, and suitable for automated cleaning, it delivers dependable operation in diverse environments, ensuring robust user interface performance.
Order your NKK Series JB15HBPC illuminated tactile switch today and enhance your electronic projects with high durability, crisp tactile feedback, and visual illumination.
