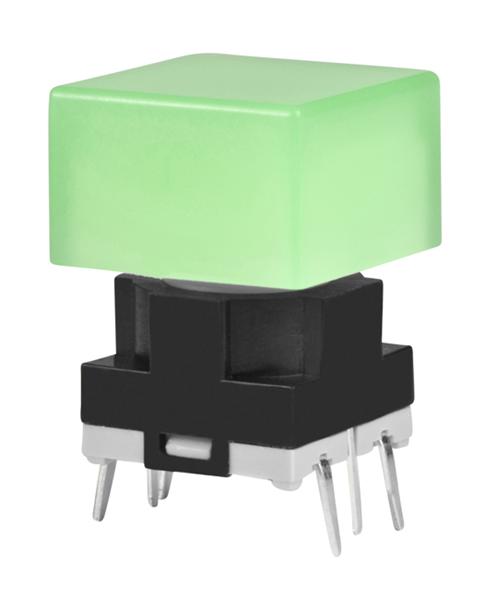

NKK Switches JB15HBPFF Illuminated Tactile Switch
This low-profile tactile switch is specifically engineered for PCB applications, offering a dependable tactile response in a compact, space-saving design ideal for electronic devices. Features include bright, full-face illumination with various LED color options like red, green, or yellow, and a dome contact that delivers crisp tactile feedback, ensuring circuit transfer reliability. The rubber seal construction prevents contact contamination and supports automated soldering and cleaning processes. Durable with a long operational life, it is suitable for use in various low-voltage, low-current logic circuits, combining functionality with design flexibility.
NKK Switches JB15HBPFF Illuminated Tactile Switch Specifications:
- Electrical Capacity (Resistive Load): 50mA @ 24V DC for Standard; 125mA @ 24V DC for High Operating Force
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N for JB15L, 2.65N for JB1SHL & JB15HB
- Total Travel: 0.010” (.254mm) for short actuator, 0.012” (.300mm) for extended
- Actuator Material: Polyacetal (short), Glass fiber reinforced PBT (extended)
- Case & Base: UL94V-0 rated polyamide, Glass fiber reinforced PBT
- Terminals: Brass with silver plating, Slanted and molded-in for secure mounting
- Operating Temperature Range: 25°C to +70°C
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration Resistance: 10-55Hz with peak-to-peak amplitude of 1.5mm in 3 directions over 2 hours
- Shock Resistance: 50G acceleration
- Soldering: Wave and manual soldering recommended, automated cleaning supported
- Certifications: UL94V-0 rated case & base, not tested for UL or CSA recognition
Buy the NKK Series JB Illuminated Low Profile Process Sealed Tactile: JB15HBPFF
Enhance your electronic designs with the NKK Series JB illuminated tactile switches, offering reliable tactile feedback, bright LED illumination in red, green, or yellow, and a sealed construction preventing contact contamination. Ideal for limited space PCB applications, they support automated soldering and cleaning, ensuring long operational life up to 5 million cycles. Choose these switches for durable, high-quality performance in low-voltage electronic circuits, with options for short and extended actuators, designed to meet your precise manufacturing needs.
Buy NKK JB15HBPFF now and experience unmatched reliability and performance in space-saving tactile switches with bright illumination.
