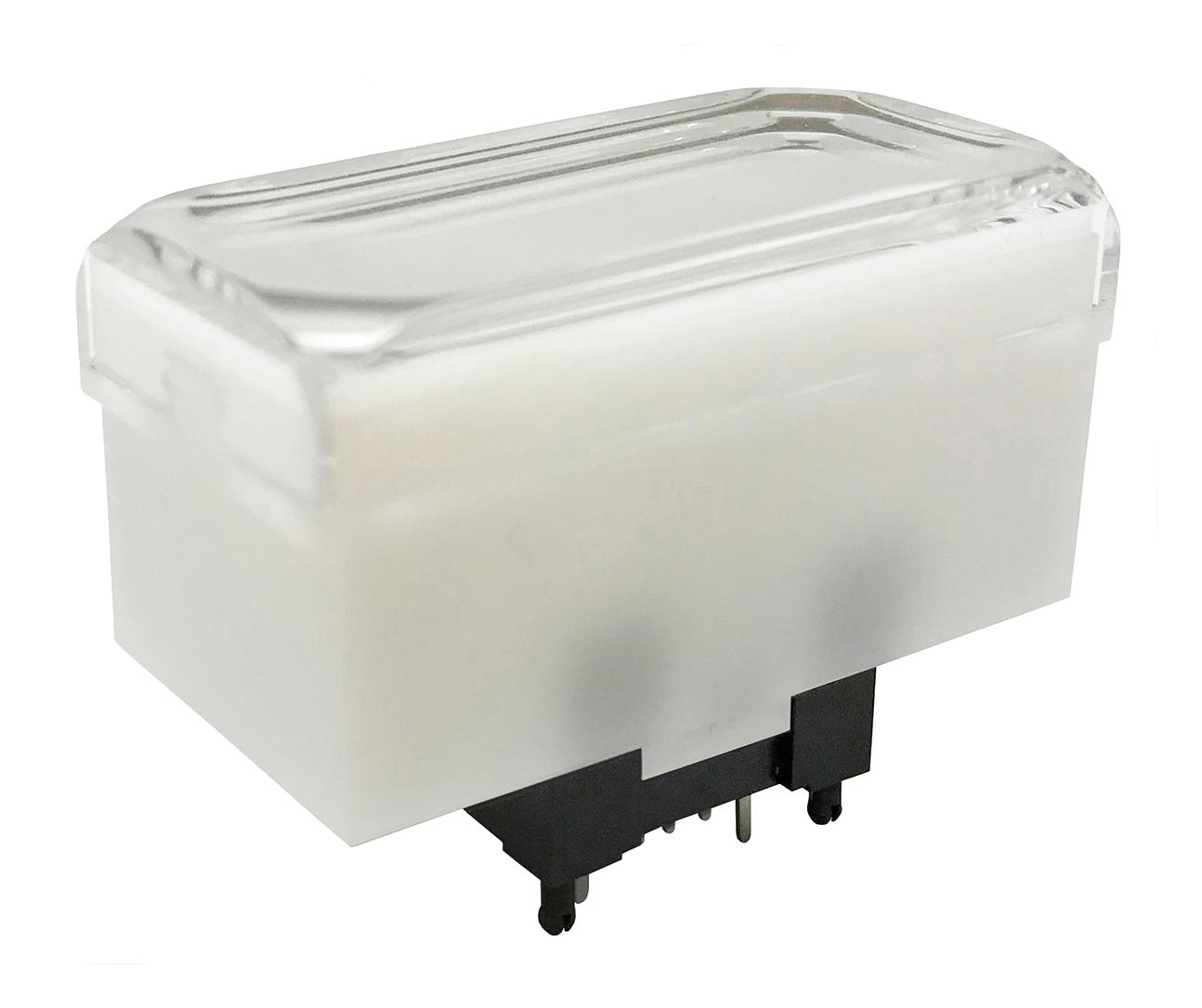

NKK Switches KP0115ACBKG03RGBJB Illuminated Pushbutton Switch
The KP0115ACBKG03RGBJB is an illuminated pushbutton switch with a rectangular sculptured cap and three RGB LEDs that produce seamless, vibrant illumination with limitless color options. This single-pole SPST momentary switch features gold contacts, straight PC terminals, and a clear lens with white diffuser. Designed for reliable switch actuation, it supports a maximum electrical capacity of 100mA at 12V DC. Its rugged construction ensures a minimum of 1,000,000 mechanical and electrical operations, suitable for transportation, military, stage lighting, and control panels, with legends customizable on the cap surface.
NKK Switches KP0115ACBKG03RGBJB Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 100mA maximum @ 12V DC
- Cap Size: 34.8mm L x 17.4mm W x 17.5mm H
- Switch Type: SPST OFF (ON) momentary
- LEDs: Three RGB LEDs for brilliant, seamless illumination
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 1,000,000 operations minimum
- Total Travel: 4.5mm (177 inches)
- Operating Temperature Range: -25°C to +50°C (-13°F to +122°F)
- Contacts: Gold, straight PC terminals
- Lens: Clear with white diffuser
- Construction: Sculptured rectangular cap, customizable legends
- Application Areas: Transportation, military, stage lighting, control panels
Buy the Buy NKK KP0115ACBKG03RGBJB Part Number KP0115ACBKG03RGBJB Online
Purchase the NKK KP0115ACBKG03RGBJB illuminated pushbutton switch online today. Featuring a sculptured rectangular cap, three RGB LEDs, and gold contacts, this switch offers reliable, high-performance switching with seamless illumination suited for control panels, transportation, and military applications. Its durable design supports over a million operations and supports custom legends. Ideal for professional installations, it provides dependable tactile actuation, easy installation, and vibrant, customizable LED illumination to enhance any control system with bright, uniform light and long-lasting performance.
Order your NKK Series KP0115ACBKG03RGBJB illuminated pushbutton today and enhance your control panel projects with vibrant RGB illumination and dependable switching performance.
Frequently Asked Questions
Where can I buy NKK Switches KP0115ACBKG03RGBJB?
You can click on the BUY or RFQ button to purchase KP0115ACBKG03RGBJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KP0115ACBKG03RGBJB?
You can download the KP0115ACBKG03RGBJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KP0115ACBKG03RGBJB?
NKK Switches
