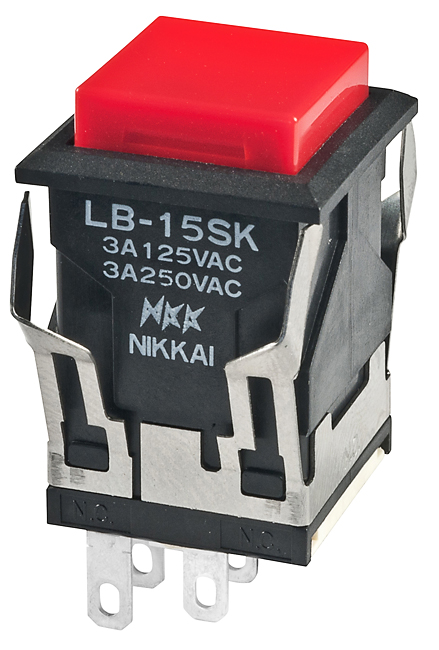

NKK Switches LB15SKW01CJ Illuminated Pushbutton
This standard size illuminated push button switch features snap-in mounting, providing reliable panel installation for various electronic and industrial control applications. Its bright illumination ensures clear visibility for operators, while the durable housing and sealed construction offer excellent environmental resistance, including IP65 specifications. The switch's snap-action mechanism offers long electrical life and smooth actuation, making it ideal for controlling circuits in machinery, automation, and instrumentation. Compatible with various LED and lamp options, it supports easy installation and maintenance for dependable operation in demanding environments.
NKK Switches LB15SKW01CJ Illuminated Pushbutton Specifications:
- Housing Material: Polycarbonate (UL94V-0)
- Mounting: Snap-in
- Illumination: Bright LED options available
- Ingress Protection: IP65
- Electrical Ratings: 3A at 125V/250V AC, 0.4VA at 28V AC/DC
- Contact Resistance: 50 milliohms (silver), 100 milliohms (gold)
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations for maintained circuit
- Nominal Operating Force: Not specified
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total 3.0mm
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Vibration Resistance: 1.5mm at 10-55Hz, 3 directions for 2 hours
- Shock Resistance: 50G in 6 directions
- Panel Thickness: 1.0mm to 4.0mm
- Certifications: UL, cULus, CSA recognized models available
Buy the Buy NKK Switches Series LB Illuminated Pushbutton Part Number LB15SKW01CJ Online
Enhance your control panels with the high-quality illuminated pushbutton from NKK Switches. Designed for durability and reliable operation, it features snap-in mounting, IP65 sealing, and long electrical life, suitable for industrial automation, machinery, and electronic systems. Easy to install and maintain, this switch offers bright LED illumination for clear visibility in various environments. Choose this robust pushbutton to ensure precise control and dependable performance in demanding applications. Purchase online now for immediate delivery and professional-grade control equipment.
Order your NKK series LB illuminated pushbutton LB15SKW01CJ today and experience dependable, high-quality control solutions for your equipment.
Frequently Asked Questions
Where can I buy NKK Switches LB15SKW01CJ?
You can click on the BUY or RFQ button to purchase LB15SKW01CJ from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15SKW01CJ?
You can download the LB15SKW01CJ datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15SKW01CJ?
NKK Switches
