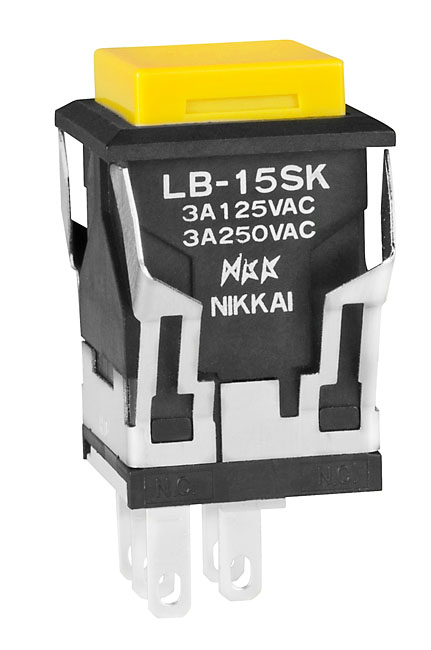

NKK Switches LB15SKW01E Illuminated Pushbutton Switch
The standard size illuminated pushbutton switch with snap-in mounting mechanism is ideal for panel mounting applications, offering easy operation, bright surface illumination, and a durable design. Featuring multiple LED color options, it ensures excellent visibility in various environments. The switch includes snap-action contacts, long electrical life, and compatibility with illuminated or non-illuminated configurations. Its rugged construction and efficient diffusion system make it a reliable component for industrial control and automation tasks, with options for different mounting depths and sealed models for harsh environments.
NKK Switches LB15SKW01E Illuminated Pushbutton Switch Specifications:
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Contacts: Silver alloy or copper with gold plating
- Electrical Capacity: 3A @ 125V AC & 250V AC, 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms max. for silver; 100 milliohms max. for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1 minute; 1,500V between contacts & case, 1 minute
- Mechanical Life: 1,000,000 operations (momentary), 200,000 (maintained circuit)
- Nominal Operating Force: 4.9N maximum on cap, 52.95N on connector
- Travel: Pretravel 0.059” (1.5mm), Overtravel 0.059” (1.5mm), Total 0.118” (3.0mm)
- Environmental Conditions: Operating temperature -25°C to +50°C illuminated, -25°C to +70°C non-illuminated; Humidity 95% for 96 hours at 40°C
- Soldering & Mounting: Snap-in mount, panel thickness 0.039” to 0.157”
- Standards & Certifications: UL Recognized, CSA Certified, IEC IP65 for sealed models
Buy the NKK LB15SKW01E – Reliable Illuminated Pushbutton for Industrial Applications
Purchase the reliable NKK LB15SKW01E illuminated pushbutton switch online today. Designed for durability and ease of operation, it features bright LED illumination, snap-in mounting, and various color options to meet industrial control needs. The switch offers long electrical life, sealed construction, and projects high visibility for operators. Its rugged build ensures dependable performance in harsh environments, making it a perfect addition to automation, machinery, and control panels. Order now for fast delivery and seamless integration into your systems.
Get NKK LB15SKW01E today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy NKK Switches LB15SKW01E?
You can click on the BUY or RFQ button to purchase LB15SKW01E from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15SKW01E?
You can download the LB15SKW01E datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15SKW01E?
NKK Switches
