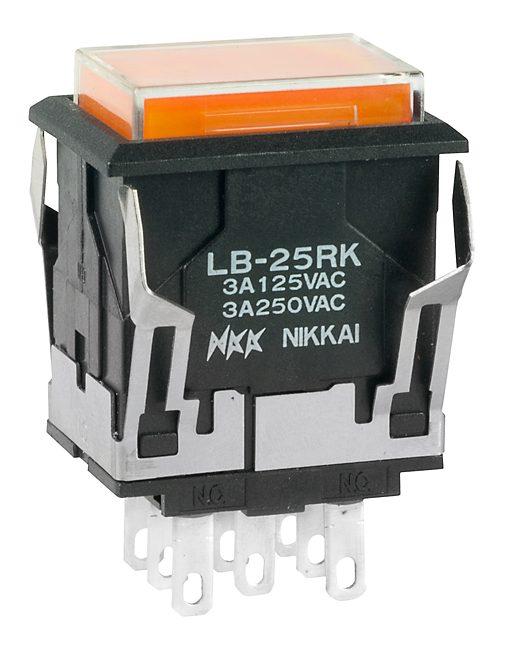

NKK Switches LB25RKW015DJD Illuminated Pushbutton Switch
The standard-sized illuminated pushbutton switch with snap-in mounting is ideal for panel applications, offering effortless installation and dependable operation. It provides visual indication when engaged, features bright LED illumination, and supports various color options. Constructed from high-quality materials such as polycarbonate and stainless steel, it withstands environmental stresses while maintaining consistent performance. Suitable for control panels and machinery, this switch enhances safety and operational clarity in industrial and commercial settings, ensuring long-lasting durability and ease of use.
NKK Switches LB25RKW015DJD Illuminated Pushbutton Switch Specifications:
- Housing: Polycarbonate
- Base: Black GFR Polyamide
- Contact Material: Silver alloy or copper with gold plating
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1000V AC minimum between contacts for 1 minute; 1500V AC minimum between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 for maintained circuit
- Electrical Life: 100,000 operations minimum
- Operating Temperature Range: -25°C through +50°C for illuminated, -25°C through +70°C for nonilluminated
- Nominal Operating Force: 4.9N maximum downward force on cap
- Travel: Pretravel 0.059” (1.5mm), Overtravel 0.059” (1.5mm), Total Travel 0.118” (3.0mm)
- Soldering: Manual soldering profile as per specifications
- Standards & Certifications: UL Recognized, CSA Certified, recognized at 3A @ 125/250V AC
Buy the Buy NKK Switches LB25RKW015DJD Part Number LB25RKW015DJD Online
Experience the reliability and ease of installation with the illuminated pushbutton switch from NKK Switches. Designed for panel mounting, it features bright LED illumination, providing clear visual indication of circuit status. Made with high-quality materials, it ensures durable performance in various industrial environments. Ideal for control panels, machinery, and automation setups, this switch simplifies operation and enhances safety. Order online today and ensure your control systems are equipped with dependable, long-lasting switching solutions that meet rigorous standards and deliver consistent performance.
Get NKK Switches LB25RKW015DJD today—built for precision, long-lasting durability, and reliable visual indication in control panel applications.
Frequently Asked Questions
Where can I buy NKK Switches LB25RKW015DJD?
You can click on the BUY or RFQ button to purchase LB25RKW015DJD from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB25RKW015DJD?
You can download the LB25RKW015DJD datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB25RKW015DJD?
NKK Switches
