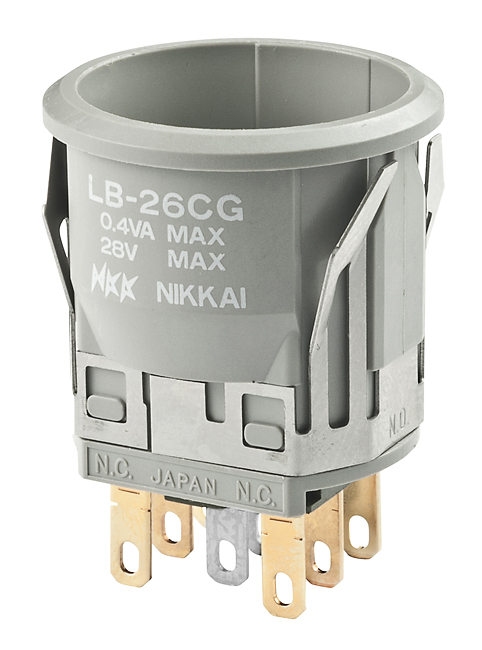

NKK Switches LB26CGG01 standard illuminated pushbutton switch
An illuminated pushbutton switch of standard size with snap-in mounting, designed for easy installation and reliable operation in various electronic applications.
NKK Switches LB26CGG01 standard illuminated pushbutton switch Specifications:
- Power Level (silver): 3A @ 125V AC or 3A @ 250V AC
- Logic Level (gold): 0.4VA @ 28V AC/DC maximum
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: Not specified
- Travel: Pretravel 0.059 inches (1.5mm); Overtravel 0.059 inches (1.5mm); Total Travel 0.118 inches (3.0mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Housing Color: Black
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 Megaohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min; 1,500V AC between contacts & case for 1 min
- Operating Temperature Range: -25°C to +50°C (Illuminated); -25°C to +70°C (Non-illuminated)
- Environmental Resistance: 90-95% humidity for 96 hours @ 40°C; Shock resistance 50G
- Installation Force: Cap installation force 3.92N; Connector force 52.95N
- Housing Recognitions: UL, CSA recognized when ordered with marking, certified only when ordered with marking
Buy the Buy NKK Switches LB26CGG01 Online
Enhance your electronic systems with this reliable illuminated pushbutton switch featuring snap-in mounting for quick installation. Designed for high durability, it supports up to 3A current at 125V or 250V AC, with a mechanical life of 1 million operations. Ideal for various automation and control applications, it provides bright surface illumination, durable housing, and proven electrical performance. Order online today to enjoy quick delivery, secure purchase, and proven quality for your industrial, control, or electronic projects.
Buy NKK Switches LB26CGG01 now and experience unmatched reliability and bright illumination in your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches LB26CGG01?
You can click on the BUY or RFQ button to purchase LB26CGG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB26CGG01?
You can download the LB26CGG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB26CGG01?
NKK Switches
