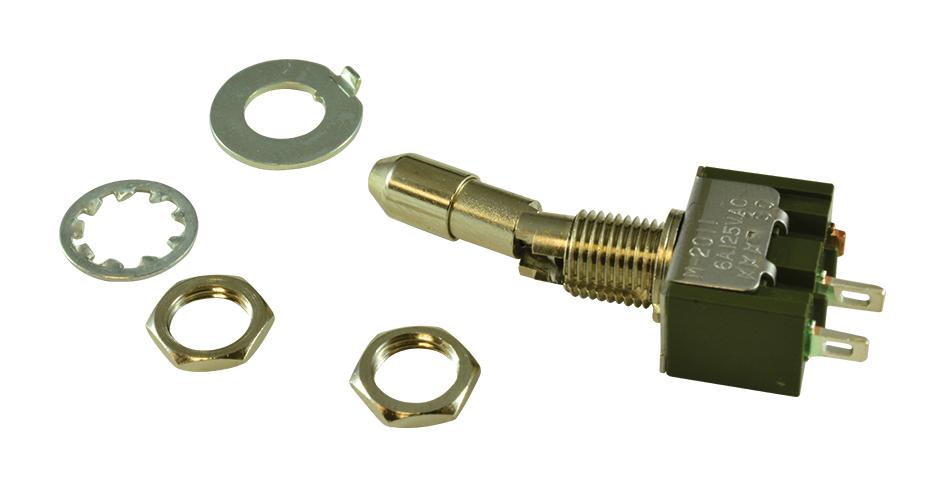

NKK Switches M2011LL1W01 Miniature Toggle Switch
The M2011LL1W01 is a SPST non-illuminated miniature panel-mount toggle switch featuring an ON-None-OFF switch function with solder lug terminals. It has a 5.1mm diameter locking lever, a 7.4mm nickel-plated brass threaded bushing with a keyway for lever locking, and a stainless steel frame with a tin-plated brass support bracket. Designed with anti-rotation and anti-jamming features, the switch ensures reliable operation by protecting contacts from damage due to excessive force. It offers high insulation barriers to increase circuit isolation and provide added contact protection. The bushing construction is high-torque to prevent rotation or separation during installation. An interlocked actuator, lever, and interior guide prevent switch failure from biased lever movement. The switch is UL94V-0 rated for flammability, IP67 rated for protection against dust and water, with a minimum of 25,000 electrical operations. Epoxy sealed terminals prevent contamination, and the operating temperature ranges from -30°C to 85°C. Suitable for industrial applications.
NKK Switches M2011LL1W01 Miniature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 6A @ 125V AC & 3A @ 250V AC
- Power Level (silver): 6A@ 125V AC & 3A@ 250V AC
- Material: Stainless steel frame, brass bushing with nickel plating
- Bushing Dimensions: 7.4mm diameter, threaded with keyway
- Switch Function: ON-None-OFF (SPST), IP67 rated
- Operating Temp Range: -30°C to 85°C
- Contact Resistance: 10 milliohms max for silver contacts
- Insulation Resistance: 1,000 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts and case for 1 min
- Mechanical Life: 25,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Auxiliary Features: Epoxy sealed terminals, high insulation barriers, anti-rotation and anti-jamming design
- Mounting: Panel mount with torque 0.4Nm (3.54 in-lb)
- Flammability: UL94V-0
- Certification: UL Recognized, CSA Certified
Buy the NKK 2011LL1W01 – Reliable Toggle Switch for Industrial Applications
Purchase the NKK miniature toggle switch online today—engineered for reliability and durability, ideal for industrial automation, control panels, and machinery. Featuring epoxy sealed terminals, IP67 protection, a locking lever, and a sturdy, corrosion-resistant build, this switch ensures safety, precise operation, and long service life. Installation is straightforward with panel mount design, and it supports extensive electrical cycles for demanding applications. Order now to enhance your control system with a proven, high-performance toggle switch that meets industry standards and offers dependable operation in tough environments.
Get NKK 2011LL1W01 today—built for precision, robust protection, and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy NKK Switches M2011LL1W01?
You can click on the BUY or RFQ button to purchase M2011LL1W01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2011LL1W01?
You can download the M2011LL1W01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2011LL1W01?
NKK Switches
