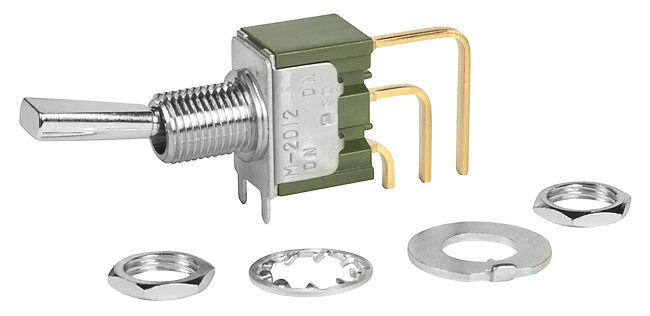

NKK Switches M2012ES1G40 Miniature Toggle Switch
This miniature toggle switch offers reliable multi-function control suitable for electronic applications. Its compact design ensures durability and precise operation in industrial and consumer devices, featuring high insulation barriers, gold or silver contact options, and a robust mechanical and electrical lifespan. Ideal for automation, control panels, and instrumentation, it provides excellent dielectric strength, resistance to vibration, shock, and humidity, and complies with UL and CSA standards, making it a versatile choice for engineers seeking durable and high-performance toggles.
NKK Switches M2012ES1G40 Miniature Toggle Switch Specifications:
- Contact Materials: Silver over Silver, Gold over Brass or Copper
- Electrical Ratings: 6A @ 125V AC, 3A @ 250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 10 milliohms max for silver; 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case for 1 min
- Mechanical Life: Minimum 100,000 operations; 50,000 for flat and splashproof
- Electrical Life: 25,000 for silver contacts; 50,000 for gold contacts
- Operating Temperature: -30°C to +85°C
- Vibration: 10-55Hz, amplitude 1.5mm
- Shock: 50G acceleration for shock resistance
- Sealing: Splashproof options IP67
- Mounting Torque: 3.0Nm for large bushing, 1.5Nm and 0.7Nm for others
- Standards & Certifications: UL94145 recognized, CSA certified
- Bushing Materials: Brass with chrome plating, stainless steel support
- Case Material: UL94V-0 diallyl phthalate resin
- Operating Angle of Throw: 25°
- Terminals: 0.150” (3.81mm) right angle PCB, vertical PC options
- Environmental Resistance: Vibration, shock, humidity resistance
Buy the NKK M2012ES1G40 – Reliable Toggle Switch for Industrial Applications
Purchase the NKK miniature toggle switch M2012ES1G40 online and ensure reliable control for your electronic or industrial projects. Designed for durability, it features high insulation, gold and silver contact options, and IP67 sealing. Ideal for automation, instrumentation, and control panels, this switch offers long mechanical and electrical lifespan with UL and CSA certification for safety and compliance. Easy to install with verified standards, it guarantees consistent performance in demanding environments. Order now and experience the quality of NKK switch solutions for your critical applications.
Get NKK M2012ES1G40 today—built for precision and long-lasting durability in electronic control systems.
Frequently Asked Questions
Where can I buy NKK Switches M2012ES1G40?
You can click on the BUY or RFQ button to purchase M2012ES1G40 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2012ES1G40?
You can download the M2012ES1G40 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2012ES1G40?
NKK Switches
