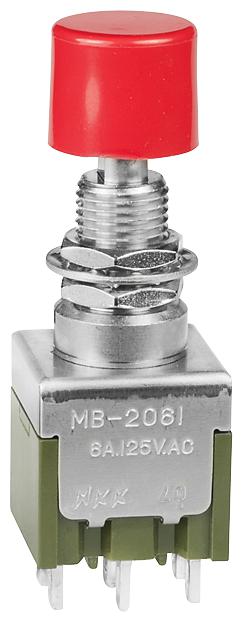

NKK Switches MB2061SS1W01CC Miniature Pushbutton
The MB2000 series miniature pushbuttons are highly durable, single- or multi-pole switches designed for industrial control applications. They feature a guide interlocked with the actuator to prevent window locking and ensure proper plunger alignment, enhancing contact stability. These switches employ an over-center actuator mechanism to reduce sparking and extend operating life in AC circuits. With splashproof options, high insulation barriers, epoxy sealed terminals, and a robust construction, they are ideal for demanding environments requiring reliable operation and effective circuit isolation. Certifications include UL and CSA, supporting diverse industrial standards.
NKK Switches MB2061SS1W01CC Miniature Pushbutton Specifications:
- Current Rating: 6A @ 125V AC & 3A @ 250V AC
- Voltage Rating: 125V AC, 250V AC, 28V DC (max 0.4VA at 28V)
- Contact Resistance: Max 10 milliohms for silver, Max 20 milliohms for gold
- Insulation Resistance: Minimum 1,000 megohms at 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Electrical Life: 50,000 to 100,000 operations depending on model
- Mechanical Life: Up to 100,000 operations
- Environmental: Operating temperature -30°C to +85°C, humidity 90-95% for 96 hours, vibration 10-55Hz, 1.5G shock resistance
- Materials: Brass with nickel plating, Diallyl phthalate resin case, stainless steel contacts
- Mounting: Bushing mount with standard or optional splashproof hardware, torque 1.5Nm
- Standards & Certifications: UL, CSA recognition and certification available upon ordering
Buy the Buy NKK Switches Miniature Pushbuttons Part Number MB2061SS1W01CC Online
Order the NKK Miniature Pushbutton MB2061SS1W01CC online today and enjoy quick delivery and trusted quality. These robust switches offer excellent electrical and mechanical lifespan, epoxy sealed terminals for protection against contaminants, and optional splashproof features for harsh environments. Suitable for various control systems, they meet UL and CSA standards, ensuring safety and compliance. Enhance your control panel with this durable, high-performance pushbutton, designed for reliable operation in demanding industrial applications. Purchase now and improve your system's dependability.
Buy NKK Switches MB2061SS1W01CC now and experience unmatched reliability and high durability in industrial control applications.
Frequently Asked Questions
Where can I buy NKK Switches MB2061SS1W01CC?
You can click on the BUY or RFQ button to purchase MB2061SS1W01CC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2061SS1W01CC?
You can download the MB2061SS1W01CC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2061SS1W01CC?
NKK Switches
