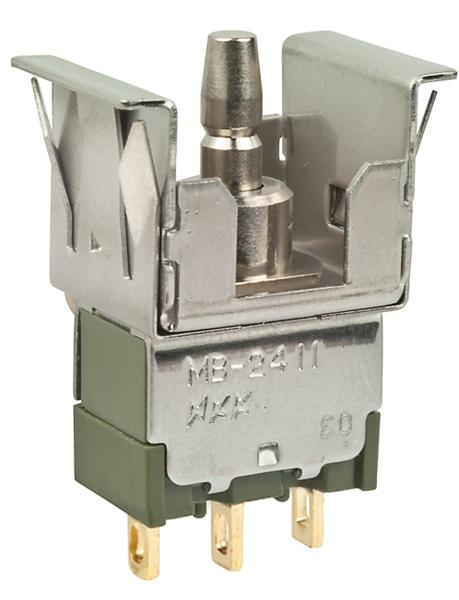

NKK Switches MB2411JG01UC Miniature Pushbutton Switch
A miniature pushbutton switch designed for momentary operation, offering smooth actuation, short stroke, and audible feedback. Made with corrosion-resistant stainless steel frame, it features silver contacts for durability and long mechanical life. Suitable for electronic applications, it is available in various bezel and LED configurations, with high ratings and compliance to UL and CSA standards. It provides reliable switching with a 3A @ 125V AC current capacity, epoxy sealed terminals for contamination protection, and wide temperature and humidity tolerance, making it a versatile and durable choice for industrial control and automation systems.
NKK Switches MB2411JG01UC Miniature Pushbutton Switch Specifications:
- Electrical Capacity: 3A @ 125V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 20 milliohms max for silver, 30 milliohms max for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case
- Mechanical Life: 200,000 operations minimum
- Electrical Life: 25,000 operations for silver, 100,000 for gold
- Operating Temp Range: -30°C to +85°C (-22°F to +185°F)
- Humidity: 90 ~ 95% RH for 96 hours @ 40°C
- Vibration: 10 ~ 55Hz at 1.5mm amplitude for 2 hours in 3 directions
- Shock: 50G acceleration in 6 directions with shocks in each
- Pushbutton Features: Short pretravel 0.6mm, overtravel 0.4mm, total travel 1.0mm
- Materials: Brass with nickel plating, stainless steel frame, PBT or diallyl phthalate resin covers
- Terminals: Epoxy sealed solder lugs, PC mount, or wire wrap options
- Standards: UL and CSA recognized, UL94V-0 flammability rating
- Temperature Range: -30°C to +85°C
Buy the NKK MB2411JG01U – Reliable Momentary Pushbutton Switch for Industrial Applications
Order the NKK miniature pushbutton switch today and experience reliable momentary operation for electronic and industrial applications. Designed to withstand harsh environments with corrosion-resistant stainless steel frames, epoxy sealed terminals, and compliance to UL and CSA standards, this switch offers long-term durability and consistent performance. Its compact size fits a variety of control panels, providing quick actuation and audible feedback, making it an essential component for automation, machinery, and electronic devices. Purchase online now for fast shipping and excellent value.
Get NKK MB2411JG01U today—built for precision, long-lasting durability, and versatile mounting options for industrial control projects.
Frequently Asked Questions
Where can I buy NKK Switches MB2411JG01UC?
You can click on the BUY or RFQ button to purchase MB2411JG01UC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2411JG01UC?
You can download the MB2411JG01UC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2411JG01UC?
NKK Switches
