NKK Switches NR01105ANG131H Subminiature Rotary Switch
The NRO1 Series subminiature process sealed rotary switches feature a compact design with a tactile detent mechanism, ensuring precise and reliable operation. Constructed with glass fiber reinforced polyester housing and gold-plated contact materials, these switches provide excellent electrical performance and environmental resistance. They are ideal for high-density applications requiring small size, robust mounting, and automated processing compatibility. With multiple pole and circuit configurations, they suit power control, measurement, telecommunication, and automation device functions where space and reliability are critical.
NKK Switches NR01105ANG131H Subminiature Rotary Switch Specifications:
- Housing: Glass fiber reinforced polyester
- Base: Glass fiber reinforced polyamide
- Rotor: Polyacetal
- Contact Material: Beryllium copper with gold plating, phosphor bronze with gold plating, steel with tin plating
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC, 250mA @ 125V AC
- Contact Resistance: 100 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 50V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 30,000 cycles minimum
- Electrical Life: 10,000 cycles minimum
- Operating Temperature: -25°C to +70°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz with 1.5mm amplitude for 2 hours
- Shock: 50G acceleration
- Soldering: Wave and manual soldering recommended
- Mounting: Crimped bracket legs, 2.54mm terminal spacing, PCB compatible

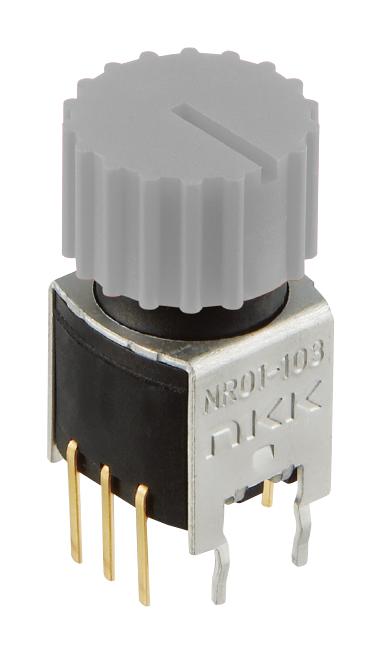

Buy the Buy NKK Switches NRO1 Series Rotary Part Number NR01105ANG131H Online
Purchase the NKK Switches NRO1 Series subminiature rotary switch online today. Known for its compact size, robust sealing, and precise detent mechanism, it offers excellent reliability for high-density electronic applications. Suitable for power control, measurement, telecommunications, and automation devices, this switch features gold-plated contacts, a glass fiber reinforced housing, and multiple circuit options. Order now and benefit from fast, secure online purchasing, ensuring your project receives high-quality, dependable components readily available for immediate shipment.
Order your NKK Switches NRO1 Series rotary switch NR01105ANG131H today and ensure reliable, space-saving control for your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches NR01105ANG131H?
You can click on the BUY or RFQ button to purchase NR01105ANG131H from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part NR01105ANG131H?
You can download the NR01105ANG131H datasheet or visit the NKK Switches website for support.
Who is the manufacturer of NR01105ANG131H?
NKK Switches
