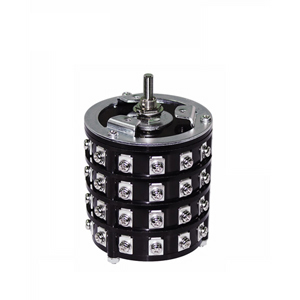

NKK Switches PS4 Power Rotary Switch
The PS4 is a high-capacity, reliable rotary switch rated at 30A / 125-250V AC, designed for control and switching applications. It features durable construction with phenolic resin housing, brass contacts with silver plating, and an adjustable stop for precise positioning. Suitable for demanding industrial environments, it offers a maximum panel thickness of 4.8mm with or without a locking ring. The switch supports multiple poles, with configurations up to nine positions and easy shaft orientation, ensuring versatility and long-lasting performance in control panels and automation systems.
NKK Switches PS4 Power Rotary Switch Specifications:
- Current Rating: 30A
- Voltage Rating: 125/250V AC
- Poles: Up to 9 poles (configurable)
- Max Panel Thickness: 4.8mm
- Shaft Types: D flat, knurled
- Housing Material: Phenolic resin
- Contact Material: Brass with silver plating
- Insulation Resistance: 200 megaohms minimum @ 500V DC
- Dielectric Strength: 1,500V AC for 1 minute
- Mechanical Life: 10,000 operations minimum
- Electrical Life: 5,000 operations minimum
- Operating Temperature Range: -10°C to +70°C
- Vibration Resistance: 10-55 Hz with peak-to-peak amplitude of 1.5mm
- Shock Resistance: 50G acceleration
- Mounting Hardware: Hex mounting nut, locking ring, split lockwasher included
Buy the NKK Series PS Power Rotary Switch: PS4
Order the NKK PS4 Power Rotary Switch online today and experience high-performance control for industrial circuits. Designed for demanding environments, it supports 30A current, multiple poles, and adjustable stops for precise operation. Its durable phenolic resin housing and brass contacts with silver plating ensure longevity and reliability. Easy to install with a maximum panel thickness of 4.8mm, the switch features a choice of D flat or knurled shafts, making it ideal for automation, control panels, and industrial equipment requiring robust switching solutions.
Get NKK PS4 rotary switch today—built for industrial control, high current capacity, and long-lasting durability.
Frequently Asked Questions
Where can I buy NKK Switches PS4?
You can click on the BUY or RFQ button to purchase PS4 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part PS4?
You can download the PS4 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of PS4?
NKK Switches
