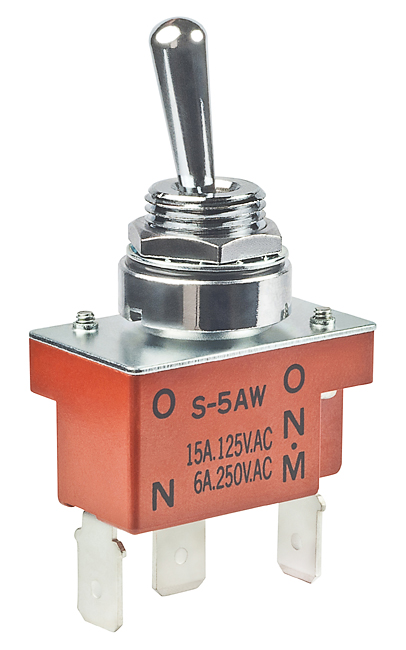

NKK Switches S5AWF Toggle Switch
Medium capacity standard size toggle switches designed for reliable performance in electronic and industrial applications. These switches feature resistive and inductive load ratings, with various configurations including single pole, double pole, and quick connect options. They are made from durable materials such as brass with chrome plating, phenolic resin, zinc-plated steel, and silver-plated copper, ensuring long-lasting operation. Suitable for panel mounting with environmental sealing up to IP67 standards, these toggles are ideal where robust switching solutions are required in demanding environments.
NKK Switches S5AWF Toggle Switch Specifications:
- Electrical Capacity (Resistive & Inductive Load): 15A to 20A at 125V-250V, DC 8A at 30V
- Material: Brass with chrome plating, phenolic resin, zinc-plated steel, silver-plated copper
- Environmental Rating: Splashproof models meet IP67 standard, operating temperature range from 10°C to 70°C
- Mounting Torque: 1.47Nm (13 in-lb) for single nut, 2.94Nm (26 in-lb) for double nut models
- Panel Thickness: 1.58 inches (4.0 mm) maximum
- Electrical Life: 50,000 operations minimum for non-splashproof, 30,000 for splashproof models
- Standards & Certifications: UL Recognized, CSA Certified when ordered accordingly
- Soldering: Manual soldering, profile A in supplement section
- Sealing: Splashproof & lever lock panel seal for IP67 compliance
- Terminals: Solder lug, quick connect, panel seal, locking lever options available
Buy the Buy NKK Series S Toggle Switch Part Number S5AWF Online
Purchase the NKK Series S toggle switch online today and enjoy precision-engineered performance for demanding electronic and industrial environments. These toggle switches feature medium capacity ratings, durable construction materials like brass, phenolic resin, zinc-plated steel, and silver-plated copper for reliable operation over thousands of cycles. They are equipped with environmental sealing up to IP67 standards, making them suitable for harsh conditions. Easy to install with mounting torque specifications, these switches ensure long-term durability, resistance, and flexible configurations to meet your specific needs. Shop now for assured quality and fast delivery.
Get NKK Series S toggle switch today—built for robustness, high capacity ratings, and long-lasting durability for industrial and electronic applications.
Frequently Asked Questions
Where can I buy NKK Switches S5AWF?
You can click on the BUY or RFQ button to purchase S5AWF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S5AWF?
You can download the S5AWF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S5AWF?
NKK Switches
