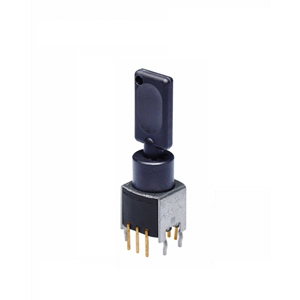

NKK Switches SK15AEG13 Sealed Keylock Switch
The SK series antistatic process sealed keylocks offer a compact and secure locking solution suitable for various electronic and automation applications. Featuring high insulating housing and bushing capable of withstanding over 15 kilovolts of electrostatic discharge, these switches are designed for automated processing with internal gaskets and molded terminals to prevent contamination. Their self-wiping contact mechanism ensures high reliability, smooth actuation, and precise switching. Ideal for low-voltage, low-current circuits, they come with key-removable options, multiple pole configurations, and robust construction for demanding environments.
NKK Switches SK15AEG13 Sealed Keylock Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC (range 0.1mA ~ 0.1A @ 20mV ~ 28V)
- Contact Resistance: 100 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 30,000 cycles minimum
- Electrical Life: 20,000 cycles minimum
- ESD withstand: 15 kilovolts
- Housing Material: Polyacetal, high insulating and antistatic
- Bushing Diameter: 9mm
- Terminal Material: Gold-plated phosphor bronze or brass
- Environmental Resistance: 85-90% humidity for 240 hours at 40°C, operating temperature -13°F through +158°F
- Vibration Resistance: 1.5mm amplitude at 1.5Hz for 1 minute in 3 directions
- Shock Resistance: 50G acceleration in 6 directions
- Soldering: Wave and manual soldering approved with Profile A
- Automation Compatibility: Designed for automated wave soldering and cleaning
Buy the NKK Series SK Antistatic Process Sealed Keylocks: SK15AEG13
Discover the NKK Series SK Sealed Keylock Switch, engineered for high durability and safety in demanding environments. Its antistatic housing withstands electrostatic discharge, offering excellent protection and reliable performance. Ideal for secure access, this compact switch features gold-plated contacts for low resistance and long cycle life. With integrated sealing and molded terminals, it ensures contamination resistance and easy installation. Perfect for automation, security, and control applications, order online today for fast delivery and dependable operation in your projects.
Order your NKK Series SK Antistatic Process Sealed Keylocks today and ensure secure, reliable access control for your electronic and automation projects.
