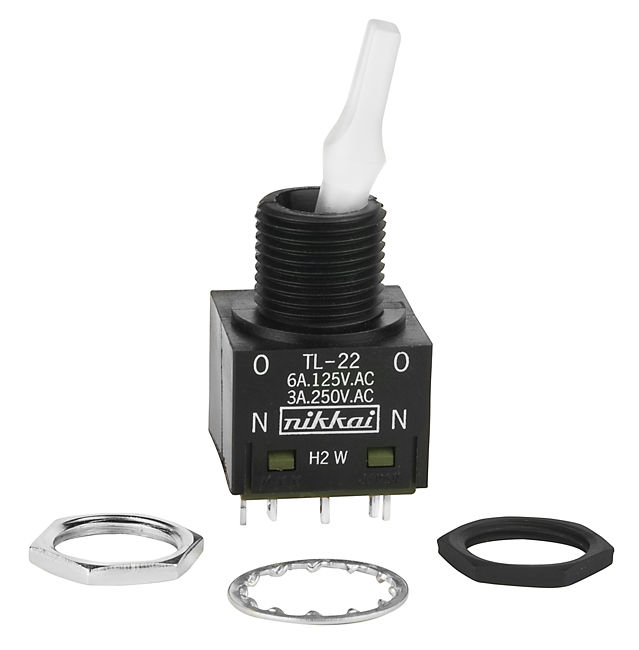

NKK Switches TL22DNAW016B Illuminated Toggle Switch
The toggle switch with illumination offers reliable performance for industrial applications, featuring a durable polycarbonate housing and various LED color options such as red, amber, green, white, blue, and super bright variants. Suitable for panel mounting, it supports switching circuits up to 6A at 125V AC and 3A at 250V AC, with an environmental rating conforming to IP65 standards. It includes options for long or short toggles, keylocks, and tactile feedback, making it ideal for control panels requiring clear visual indication and high electrical resilience.
NKK Switches TL22DNAW016B Illuminated Toggle Switch Specifications:
- Mechanical: Toggle Lengths: 0.689 inches (17.5mm) and 0.433 inches (11.0mm)
- Electrical Capacity: 6A at 125V AC, 3A at 250V AC, 6A at 12V DC
- LED Colors: Red, Amber, Green, White, Blue, Super Bright variants
- Material: Polycarbonate housing, glass fiber reinforced polyamide base
- Environmental: Operating temperature -10°C to +55°C, IP65 panel seal, 90-95% humidity resistance
- Vibration & Shock Resistance: 1.5mm vibration, 50G shocks
- Contact Resistance: Silver contacts max 10 milliohms, gold contacts max 20 milliohms
- Insulation Resistance: 1,000 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC contact to contact, 1,500V AC contact to case
- Electrical Life: Silver contacts - 50,000 operations, Gold contacts - 50,000 operations
- Soldering: Manual soldering profile according to UL94V-0 standards
- Standards: Flammability rated UL94V-0, conforming to IP65 for panel sealing
Buy the NKK TL22DNAW016B – Reliable Illuminated Toggle for Industrial Applications
Order the NKK TL22DNAW016B illuminated toggle switch today for reliable performance in industrial control panels. Features include multiple LED colors, IP65 sealing, high switching capacity, and robust construction to withstand harsh environments. Perfect for automation, machinery, and control system applications. Ensure your control systems are highly visible and dependable with this durable, easy-to-install switch. Buy online now for fast delivery and competitive prices on this essential industrial component.
Get NKK TL22DNAW016B today—built for precision, durability, and high electrical performance in control and automation systems.
