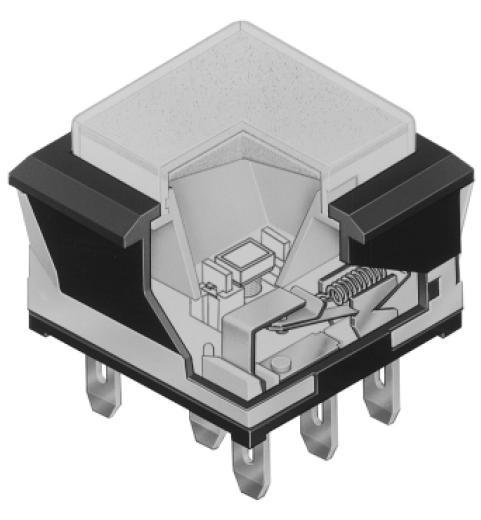

NKK Switches UB15NBKG015DJD Low Profile Illuminated Pushbutton
Low profile illuminated pushbutton suitable for printed circuit board mounting and soldering connections, featuring bright LEDs in various colors, compact design, quick make and break contact mechanism, and compliance with UL and CSA standards. Ideal for applications requiring space-saving control solutions with tactile feedback and long electrical life, this switch offers reliable performance in harsh environments, with high Insulation Resistance and excellent dielectric strength. Suitable for both momentary and alternate action circuits, it provides durable contact materials and versatile cap options for aesthetic and functional customization.
NKK Switches UB15NBKG015DJD Low Profile Illuminated Pushbutton Specifications:
- Poles & Circuits: 1 SPDT, 2 SPDT
- Max Electrical Load: 5A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: Silver 50 milliohms, Gold 100 milliohms max
- Insulation Resistance: Minimum 200 megohms @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V contact to case for 1 minute
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations with resistive load, 100,000 for silver contacts
- Travel: Total 0.091” (2.3mm), Pretravel 0.067” (1.7mm), Overtravel 0.024” (0.6mm)
- Operating Temperature Range: -25°C to +50°C for illuminated, -20°C to +70°C for non-illuminated
- Materials: Housing/Bezel - UL94V-0 glass fiber reinforced polyamide, Contacts - Silver alloy or copper with gold plating
- Operating Force: Single pole 1.9N, Double pole 2.55N to 3.1N depending on model
- Mounting: PCB snap-in with solder lug or built-in bezel options
- Standards & Certifications: UL recognized, CSA certified, Flammability UL94V-0
- Protection: Sealed terminals to prevent flux and solvent ingress
- LED Compatibility: Bright and super bright options, various colors, with optional diffusers and lenses
- Cap Options: Full face illuminated, spot illuminated, opaque, transparent, and custom legends
- Environmental: Humidity up to 95% for 96 hours at 40°C, Shock 50G, Vibration 10-55Hz
