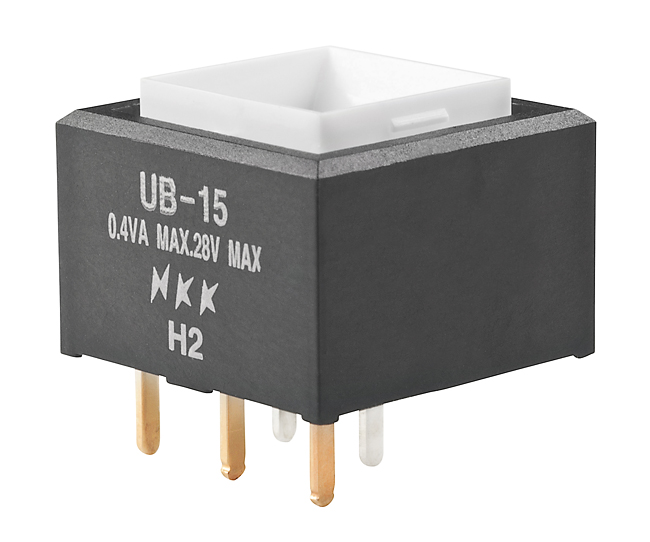

NKK Switches UB15SKG036F Low Profile Illuminated Pushbutton
This low-profile illuminated pushbutton switch is designed for PCB mounting, featuring a compact size ideal for space-limited applications. Equipped with bright LED illumination, it offers easy visibility and reliable operation. The switch supports both momentary and alternate actions, with quick-make and quick-break contact mechanisms that extend electrical life and reduce arcing. Its construction includes durable materials like polycarbonate and stainless steel, ensuring longevity and resistance to environmental factors. Ideal for control panels and automation systems requiring space-efficient and visually distinctive switches.
NKK Switches UB15SKG036F Low Profile Illuminated Pushbutton Specifications:
- Poles & Circuits: Single Pole SPDT, Double Pole DPDT
- Mounting Type: PCB Mounting, Snap-in
- LED Colors & Specifications: Bright LEDs in Red, Amber, Green, White, Blue; Forward Voltage: 1.85-3.2V; Peak Current: 25-30mA
- Rated Voltage & Current: 125/250V AC at 5A, 28V DC at 0.4VA max
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: ≥200 MΩ at 500V DC
- Dielectric Strength: 1,000V AC contact to case, 1,500V AC between contacts and case
- Mechanical Life: ≥1,000,000 operations (momentary)
- Electrical Life: ≥200,000 operations at resistive load
- Operating Temperature Range: -25°C to +50°C (Illuminated), -20°C to +70°C (Non-illuminated)
- Dimensions: Length approx. 15.24 mm, width approx. 15.24 mm, height approx. 24 mm
- Housing Material: UL94V-0 Polycarbonate, Bezel and Base Stainless Steel
- Environmental Resistance: Humidity up to 95% at 40°C, vibration 3Hz-55Hz, shock 50G
- Standards & Certifications: UL recognized, CSA certified, UL94V-0 flame rating
