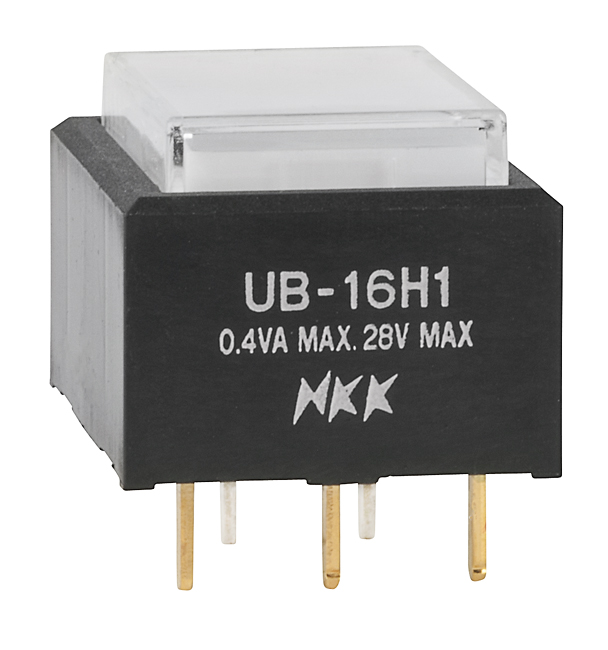

NKK Switches UB16RKG035FJB Low Profile Pushbutton Switch
A low-profile, illuminated pushbutton switch designed for PCB mounting and soldering. It features bright LEDs in various colors, a snap-acting mechanism for sensitive actuation, and is suitable for compact applications. The switch includes options for square or rectangular caps with full face or spot illumination, and can be customized with legends and accessories like protective guards. It meets industry standards for electrical life, contact resistance, and insulation resistance, making it reliable for control interfaces in industrial, medical, and consumer electronics.
NKK Switches UB16RKG035FJB Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: SPDT, DPDT, with optional illuminated and non-illuminated versions
- LED Colors & Types: Red, Amber, Green, White, Blue; Bright or Super Bright LEDs, full face or spot illumination
- Electrical Ratings: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC, with electrical life up to 200,000 operations
- Contact Resistance: Silver contacts ≤ 50 milliohms, Gold contacts ≤ 100 milliohms
- Insulation Resistance: Minimum 200 megaohms at 500V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts, 1,500V AC between contacts and case
- Operating Temperature Range: -25°C to +50°C for illuminated, -20°C to +70°C for non-illuminated
- Mechanical & Electrical Life: Up to 200,000 cycles for silver contacts, 1,000,000 operations for momentary switches
- Switch Travel & Force: Pretravel 1.7mm, overtravel 0.6mm, Force 1.9N to 3.1N depending on model
- Housing Material: UL94V-0 rated polyamide, stainless steel, phosphor bronze, and brass components
- Panel Fit: Recommended panel thickness 1.0mm to 3.2mm, snap-in mounting with corrosion-resistant terminals
- Environmental Resistance: Humidity to 95%, shock resistance 50G, vibration 3Hz-55Hz, temperature tolerance suitable for industrial environments
Buy the Buy NKK Switches Low Profile Pushbuttons Part Number UB16RKG035FJB Online
Order the NKK Switches UB16RKG035FJB online today to enhance your control panels with a compact, illuminated pushbutton switch. Designed for PCB mounting, this switch offers bright LED indicators in multiple colors, ensuring high visibility and reliable performance in space-constrained environments. Its robust contact ratings, high electrical and mechanical life, and industry-standard certifications make it ideal for industrial, automation, and consumer applications. Easy to install, with customizable legends and accessories, it provides a durable, space-saving solution for your control interface needs.
Get NKK Switches UB16RKG035FJB today—built for compact, reliable control with bright LEDs and long-lasting durability.
