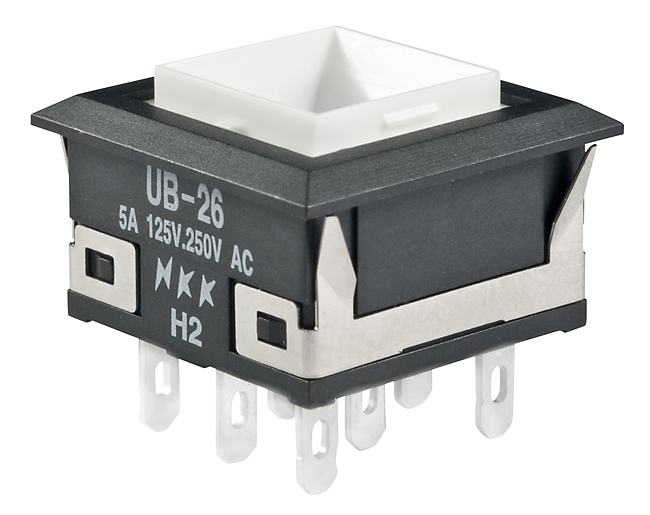

NKK Switches UB26KKW016F Low Profile Pushbutton
A low-profile, illuminated pushbutton switch suitable for PCB mounting and soldering applications. Designed for easy installation and reliable operation in various electronic devices.
NKK Switches UB26KKW016F Low Profile Pushbutton Specifications:
- Poles & Circuits: SPDT, DPDT
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 1.9N for square & 1.9N for rectangular poles
- Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total travel 0.091” (2.3mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Operating Temperature Range: -25°C to +50°C for illuminated, -20°C to +70°C for non-illuminated
- Indicator Type: Bright or super bright LEDs in red, amber, green, white, or blue
- LED specifications: Forward Voltage 1.85V-3.2V, Forward Current 20-30mA, Polarity marked on switch
- Panel Thickness: 0.039” to 0.126” (1.0mm to 3.2mm)
- Soldering: Wave soldering compatible; manual soldering with Profile A recommended
Buy the Buy NKK Switches Low Profile Pushbutton Part Number UB26KKW016F Online
Experience the reliability and compact design of the NKK Switches low-profile illuminated pushbutton, ideal for PCB applications. With easy snap-in mounting, it features bright or super bright LEDs in multiple colors, ensuring excellent visibility. Its robust construction supports up to 1,000,000 mechanical operations and 200,000 electrical operations, making it durable for long-term use. Whether for control panels, instrumentation, or automation systems, this switch provides dependable performance, simple installation, and compliance with safety standards—perfect for modern electronic projects. Order online today to ensure quick delivery and quality assurance.
Get NKK Switches UB26KKW016F today—built for precision, high durability, and reliable performance in compact electronic devices.
Frequently Asked Questions
Where can I buy NKK Switches UB26KKW016F?
You can click on the BUY or RFQ button to purchase UB26KKW016F from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB26KKW016F?
You can download the UB26KKW016F datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB26KKW016F?
NKK Switches
