NKK Switches YB216CWCKW015CCB Panel Seal Pushbutton

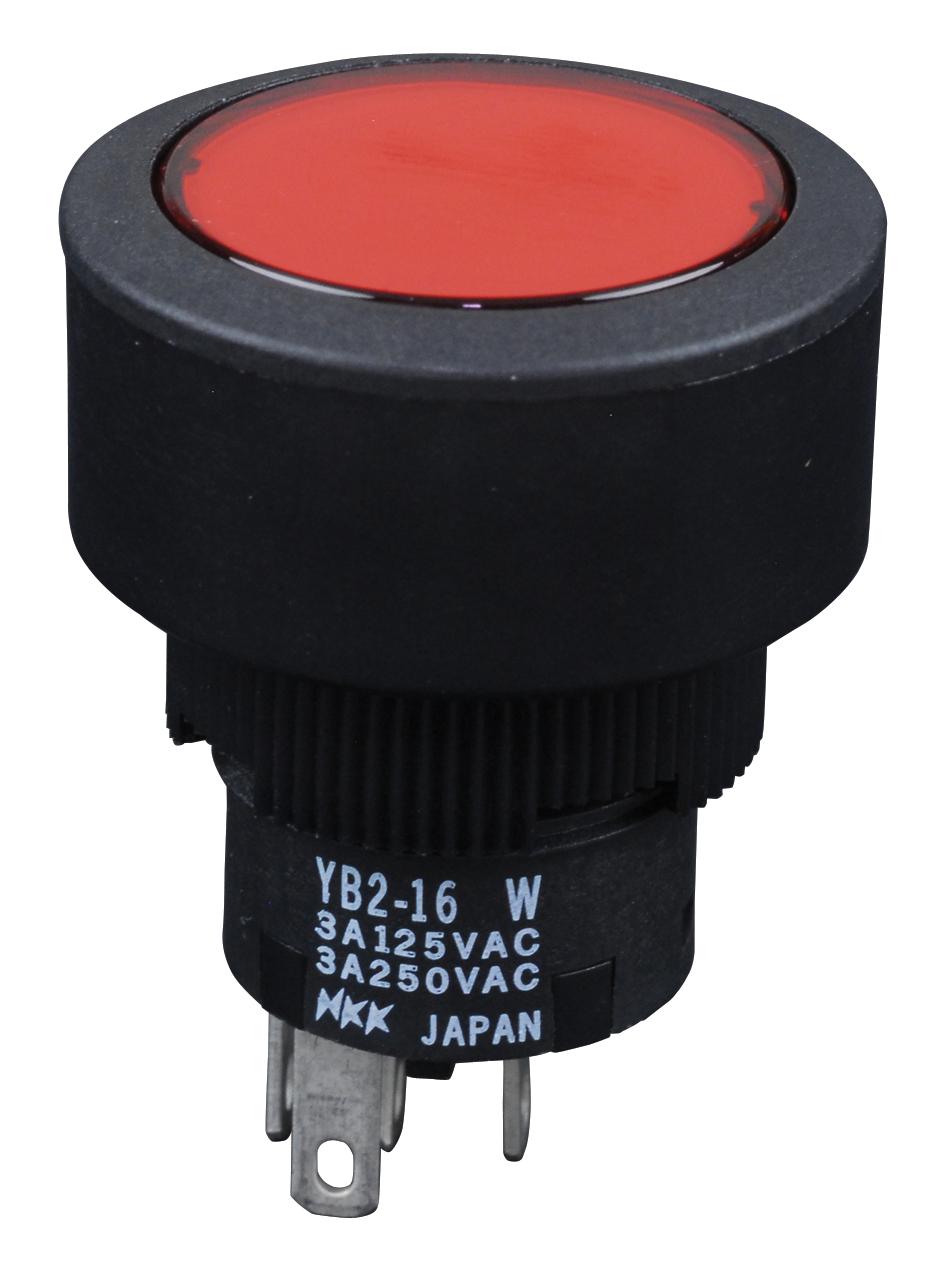

The YB216CWCKW01-5C-CB panel seal pushbutton switch features a red-illuminated round body with a durable polycarbonate cap, red lens, and white diffuser, suitable for harsh environments. It offers a compact design with a body length of 0.965 inches, ideal for space-constrained panels. This switch has a IP65 protection rating, making it dust-tight and splashproof. It includes silver contacts with tin-plating on phosphor bronze terminals, rated for 3A at 125/250V AC, with a temperature range from -25°C to 50°C. Perfect for industrial control and automation panels, with reliable, snap-action operation and durable construction.
NKK Switches YB216CWCKW015CCB Panel Seal Pushbutton Specifications:
- Body Length: 0.965 inches (24.5mm)
- Protection Rating: IP65 IEC60529
- Switch Type: Single pole, SPDT
- Electrical Rating: 3A at 125V AC or 250V AC, 0.4VA at 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver contacts, 100 milliohms maximum for gold contacts
- Operating Temperature: -25°C to 50°C
- Material: Polycarbonate cap, epoxy sealed terminals
- Lens Material: Polycarbonate
- Terminal Type: Solder lug and .110" quick connect
- Mounting: Panel thickness 0.020" to 0.197"
- Sealing: IP65 compliant, with two o-rings for panel seal
- Mounting Torque: 0.785 Nm (6.95 lb-in)
- Certification: Recognized under UL, cULus marked upon request
Buy the NKK Series YB2 Panel Seal Pushbutton: YB216CWCKW01-5C-CB
Order the NKK YB216CWCKW01-5C-CB panel seal pushbutton switch online today to enhance your automation and control systems. Featuring a compact body length of just 0.965 inches, IP65 splashproof protection, and durable silver contacts rated at 3A, this switch ensures reliable operation in demanding environments. Its IP65 sealing meets IEC standards, preventing dust and water ingress. Easy to install with solder lug and quick connect terminals, and compliant with UL standards, this switch is ideal for industrial panels requiring high durability and performance. Purchase now for fast delivery.
Buy NKK YB216CWCKW01-5C-CB now and experience unmatched reliability and performance in industrial control panels.
Frequently Asked Questions
Where can I buy NKK Switches YB216CWCKW015CCB?
You can click on the BUY or RFQ button to purchase YB216CWCKW015CCB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB216CWCKW015CCB?
You can download the YB216CWCKW015CCB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB216CWCKW015CCB?
NKK Switches
