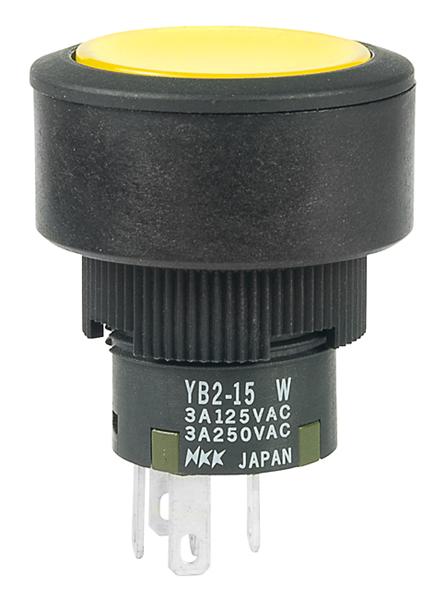

NKK Switches YB225CWCKW01CUL5DJB Panel Seal Pushbutton Switch
The YB2 Series LED pushbutton switch offers reliable, flush-mount design with illumination, perfect for industrial control panels. It features a compact 22mm size, high-quality materials, and a sealed IP65 rating for dust and splash protection. The switch provides crisp tactile feedback, with options for different LED colors, including super bright white, red, green, amber, and blue. Suitable for momentary and maintained circuits, it offers versatile mounting options with quick connect and solder lug terminals. Built for durability, it withstands harsh environments, ensuring long-term performance for automation and industrial applications.
NKK Switches YB225CWCKW01CUL5DJB Panel Seal Pushbutton Switch Specifications:
- Size: 22mm and 24mm pushbuttons with shortest above-panel dimension of 1.8mm for splashproof design
- IP Rating: IP65 IEC60529 standard (dust tight and splashproof)
- Electrical Load: 3A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms maximum for gold
- Insulation Resistance: Minimum 200 megohms @ 500V DC
- Dielectric Strength: 1000V AC between contacts for 1 min, 1500V AC between contacts and case for 1 min
- Mechanical Life: 1,000,000 operations (momentary circuit), 200,000 (maintained circuit)
- Travel: Total: 0.118” (3.0mm); Pretravel & Overtravel: 0.059” (1.5mm)
- Material: Bezel - UL94V-0 glass fiber reinforced polyamide; Housing - glass fiber reinforced polyamide; Base - diallyl phthalate resin
- Connectors: Solder lug and .110” quick connect terminals sealed to prevent contaminants
- Tamper resistant actuator: 19mm diameter, square actuator, choice of clear, red, green, amber, or metallic silver caps, with bright ring illumination options
Buy the NKK YB2 – Reliable Panel Seal Pushbuttons for Industrial Applications
Enhance your control panel setup with the NKK YB2 Series Panel Seal Pushbuttons. Featuring IP65 sealing, multiple LED colors, and robust construction, these pushbuttons ensure reliable operation even in harsh environments. Designed for versatility, they come with quick connect or solder lug terminals and are available in momentary or maintained circuits. Their compact size and sealed design make them suitable for automation, manufacturing, and control systems, delivering durability, clear circuit indication, and easy installation for industrial professionals seeking top performance and durability.
Buy NKK YB2 Panel Seal Pushbuttons now and experience unmatched reliability and performance for industrial control panels.
Frequently Asked Questions
Where can I buy NKK Switches YB225CWCKW01CUL5DJB?
You can click on the BUY or RFQ button to purchase YB225CWCKW01CUL5DJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB225CWCKW01CUL5DJB?
You can download the YB225CWCKW01CUL5DJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB225CWCKW01CUL5DJB?
NKK Switches
