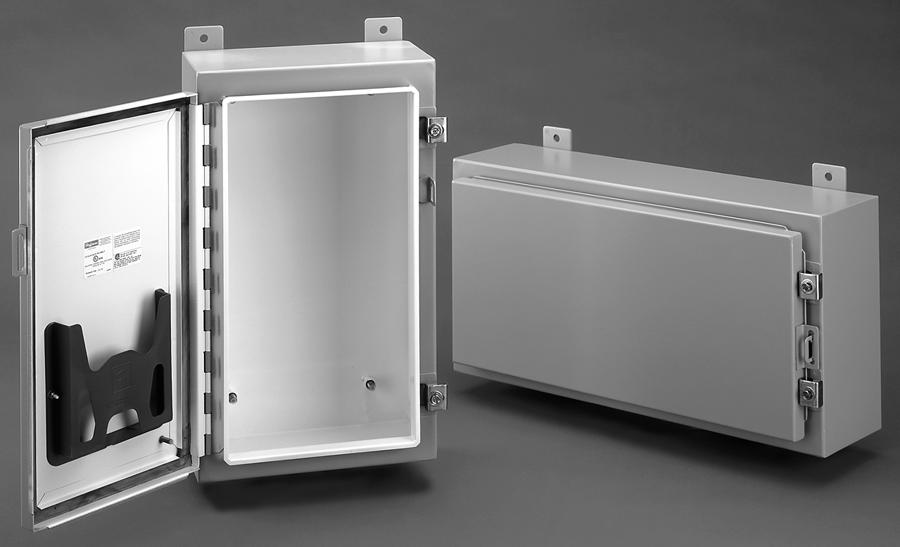

NVENT HOFFMAN A161208LP Wall-Mount Enclosure
The A161208LP is a gray (ANSI 61) Type 12 wall-mount enclosure constructed from 16-gauge steel. It features a continuous hinge with clamps, a padlocking hasp and staple for security, and screw-down clamps for secure closure. The enclosure has formed external return flanges around all sides of the opening. The interior is finished in bright white to enhance visibility for control components. It includes external wall-mounting brackets for easy installation, a high-impact thermoplastic data pocket, and collar studs for mounting optional panels. The door is removable with a continuous hinge and includes bonding provisions. Seams are continuously welded and ground smooth, and an oil-resistant gasket provides sealing. Suitable for industrial applications.
NVENT HOFFMAN A161208LP Wall-Mount Enclosure Specifications:
- Material: 16-gauge steel
- Finish: Gray outside (ANSI 61), Bright white inside
- Enclosure Type: NEMA 12, 13, IEC 60529 IP65
- Seam: Continuously welded and ground smooth
- Hinges: Removable heavy-gauge continuous hinge pin
- Clamps: Screw-down door clamps
- Locking: Padlocking hasp and staple included
- Mounting: External wall-mounting brackets provided
- Data Pocket: High-impact thermoplastic
- Dimensions: Not specified in the provided data
- Seals: Oil-resistant gasket
- Bonding: Provision on door
- Flanges: Formed external return flanges around all sides
Buy the PENTAIR A161208LP – Reliable Industrial Enclosure for Control Cabinets
Discover the robust and secure PENTAIR wall-mount enclosure designed for industrial environments. Crafted from durable 16-gauge steel with a gray finish, it features a continuous hinge, screw-down clamps, and a padlocking hasp for added security. The bright white interior enhances control visibility, while external brackets facilitate quick installation. Sealed with an oil-resistant gasket, the enclosure ensures protection against dust and moisture, meeting NEMA 12, 13, and IEC IP65 standards. Ideal for industrial control panels, process electrical devices, and automation systems requiring reliable enclosure solutions.
Buy PENTAIR A161208LP now and experience unmatched reliability and performance in industrial enclosure applications.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN A161208LP?
You can click on the BUY or RFQ button to purchase A161208LP from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part A161208LP?
You can download the A161208LP datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of A161208LP?
NVENT HOFFMAN
