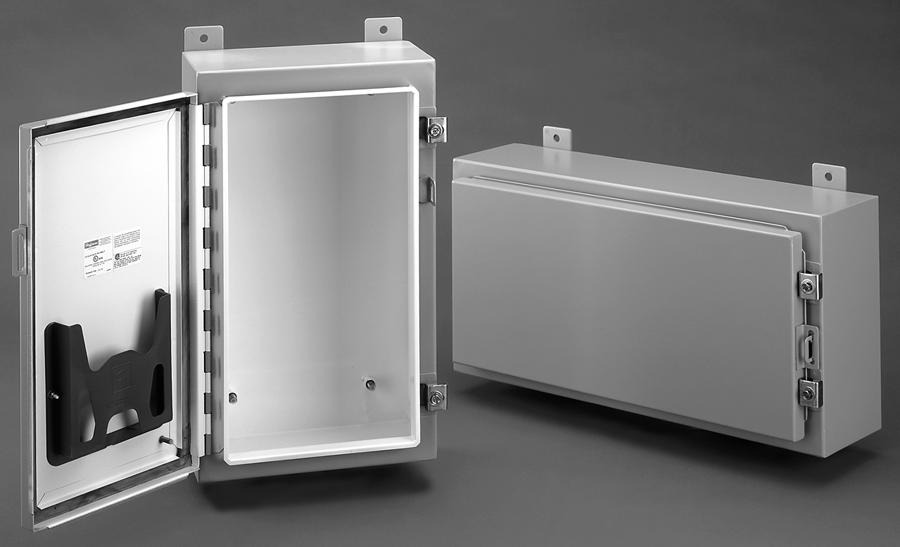

NVENT HOFFMAN A242412LP Wall-Mount Enclosure
The NVENT Hoffman A242412LP is a Type 12 wall-mount enclosure designed for applications requiring a bright white interior and secure closure. Constructed from 16-gauge steel, it features continuously welded and ground seams, external mounting brackets, and formed return flanges. The enclosure includes screw-down door clamps, a removable hinge pin, a hasp and staple for security, a data pocket, and collar studs for panel mounting. It's ideal for environments needing protection from dust, dirt, and splashing water, commonly used in industrial control panels and equipment housings.
NVENT HOFFMAN A242412LP Wall-Mount Enclosure Specifications:
- Enclosure Body Gauge: 14 or 16 gauge steel
- Door Gauge: 14 gauge steel
- Seams: Continuously welded and ground smooth
- Mounting Brackets: External wall-mounting brackets
- Flanges: Formed external return flanges
- Door Clamps: Screw-down door clamps
- Hinge: Removable heavy-gauge continuous hinge pin
- Hasp and Staple: For padlocking
- Data Pocket: High-impact thermoplastic
- Collar Studs: For mounting optional panels
- Bonding Provision: On door
- Finish: White inside with ANSI 61 gray outside
- Standards: UL 508A Listed; Type 12, 13; cUL Listed per CSA C22.2 No. 94; Type 12, 13; NEMA/EEMAC Type 12 and 13; CSA, File No. 42186; IEC 60529, IP65
- Panel Size (D x E): 24.00 x 24.00 in./610 x 610 mm
- Body Gauge: 16
- Panel Gauge: 16
- Panel (D x E): 21.00 x 21.00 in./533 x 533 mm
- Number of Clamps: 2
- Pocket: Small
Buy the A242412LP NVENT HOFFMAN Wall-Mount Enclosure | myMectronic
Purchase the NVENT Hoffman A242412LP enclosure securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy NVENT HOFFMAN A242412LP?
You can click on the BUY or RFQ button to purchase A242412LP from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part A242412LP?
You can download the A242412LP datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of A242412LP?
NVENT HOFFMAN
