NVENT HOFFMAN A302412LP Datasheet & Stock

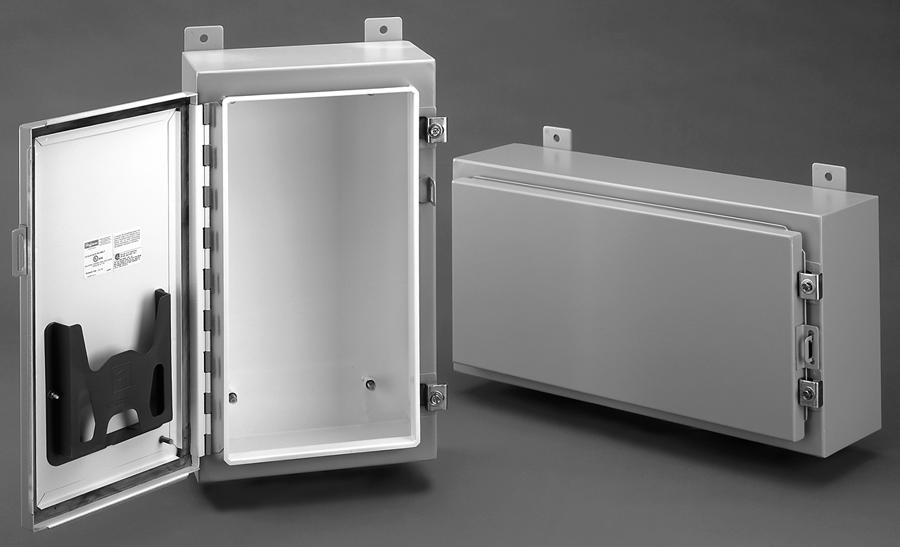

The A302412LP is a gray (ANSI 61) type-12 Wall-mount Enclosure made of 14-gauge steel. The model 28530 enclosure features a continuous hinge with clamps. For applications requiring a bright white interior to increase control visibility, this enclosure includes a padlocking hasp and staple for security and screw-down clamps for secure closure. Formed external return flanges around all sides of enclosure opening.




White inside with ANSI 61 gray finish outside

Seams continuously welded and ground smooth

External wall-mounting brackets for easy installation

Screw-down door clamps

Removable heavy-gauge continuous hinge pin

Hasp and staple for padlocking

Data pocket is high-impact thermoplastic

Collar studs provided for mounting optional panels

Bonding provision on door

Removable door with continuous hinge





Oil-resistant gasket





Applications


Industrial
