A Premier B2B Part Search

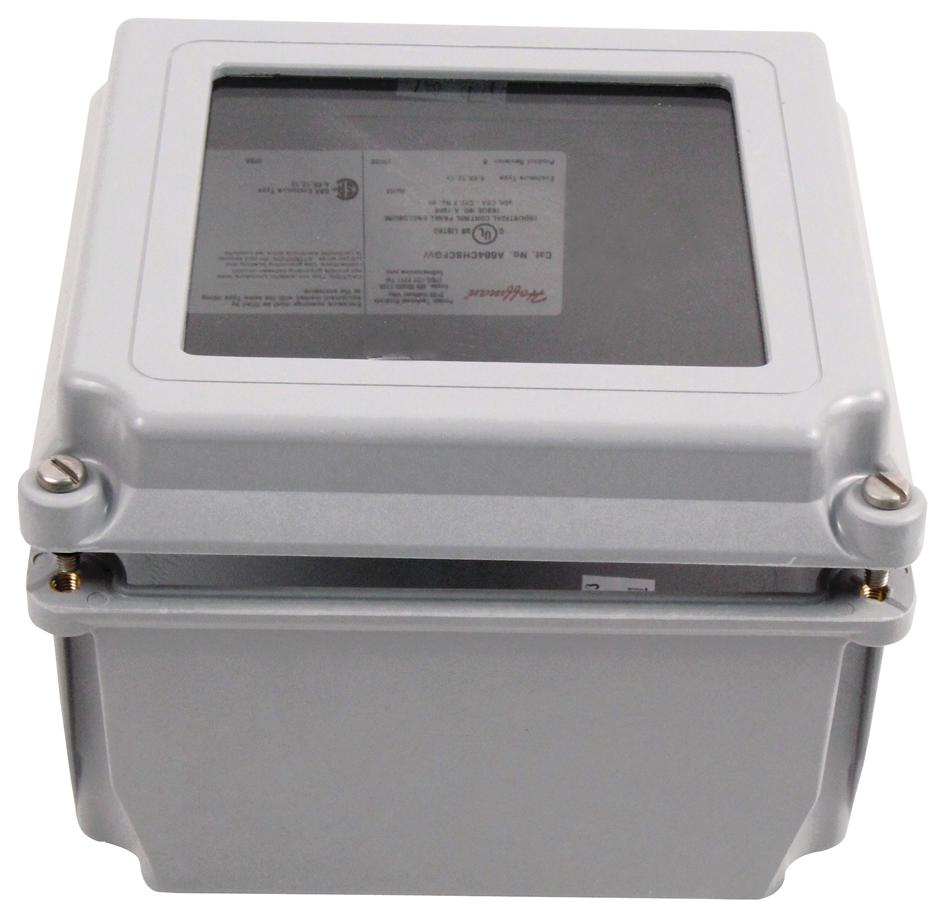

NVENT HOFFMAN A664CHSCFGW Fiberglass Enclosure
The enclosure features an efficient and simple design, making it durable in corrosive environments. Equipped with corner latches for unobstructed access and a continuous hinge to ensure a secure seal, it also offers increased security through double latching. Made from compression-molded fiberglass, it exhibits excellent chemical and temperature resistance, weatherability, and physical properties. The enclosure includes molded-in-place threaded brass inserts, plated steel screws for mounting optional panels and terminal blocks, and corrosion-resistant polyester latches in the corners. It provides an IP66, NEMA/EEMAC-4, 4X, 12, and 13 protection rating. The fiberglass material is easy to punch, drill, file, or saw. A gasket ensures a water-tight and dust-tight seal. Each enclosure comes with polyester mounting brackets and stainless steel attachment screws. Scratch-resistant polycarbonate windows are permanently bonded in place. The removable hinged cover is attached with a Type 316 stainless steel hinge pin, and screw-cover variants are secured with captivated stainless steel slotted screws. The standard product includes a window cover and provisions for padlocks. It is halogen-free and suitable for various industrial applications.
NVENT HOFFMAN A664CHSCFGW Fiberglass Enclosure Specifications:
- Material: Compression-molded fiberglass with outstanding chemical- and temperature-resistance qualities
- Protection Ratings: IP66, NEMA/EEMAC Type 4, 4X, 12, 13
- Seal: Gasket for water-tight and dust-tight protection
- Finish: Light-gray fiberglass, optional white, stainless steel, aluminum, conductive, and composite panels
- Windows: Scratch-resistant polycarbonate permanently bonded
- Mounting: Molded-in-place threaded brass inserts, stainless steel screws included
- Closure: Continuous hinge with Type 316 stainless steel hinge pin, screw-cover secured with stainless steel screws
- Latches: Corner latches with padlock provisions, corrosion-resistant polyester
- Physical Dimensions & Features: Modular sizes with optional panels and accessories, easy to punch, drill, saw
- Application: Suitable for corrosive environments, industrial control, and electrical equipment
Buy the Buy Pentair Fiberglass Enclosure Part Number A664CHSCFGW Online
Purchase the Pentair Fiberglass Enclosure online today for reliable protection in corrosive and industrial environments. Designed with a secure continuous hinge, corrosion-resistant components, and a water-tight gasket, this enclosure ensures safe and durable operation. It features a scratch-resistant polycarbonate window, Type 316 stainless steel hinge pin, and quick-acting latches with padlock provisions for enhanced security. Lightweight yet robust, it offers high chemical and temperature resistance, easy mounting options, and various accessory choices. Perfect for electrical, control, and industrial applications requiring durable enclosures with IP66 rating.
Get Pentair A664CHSCFGW today—built for corrosion resistance, IP66 rated protection, and long-lasting durability in harsh environments.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN A664CHSCFGW?
You can click on the BUY or RFQ button to purchase A664CHSCFGW from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part A664CHSCFGW?
You can download the A664CHSCFGW datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of A664CHSCFGW?
NVENT HOFFMAN
