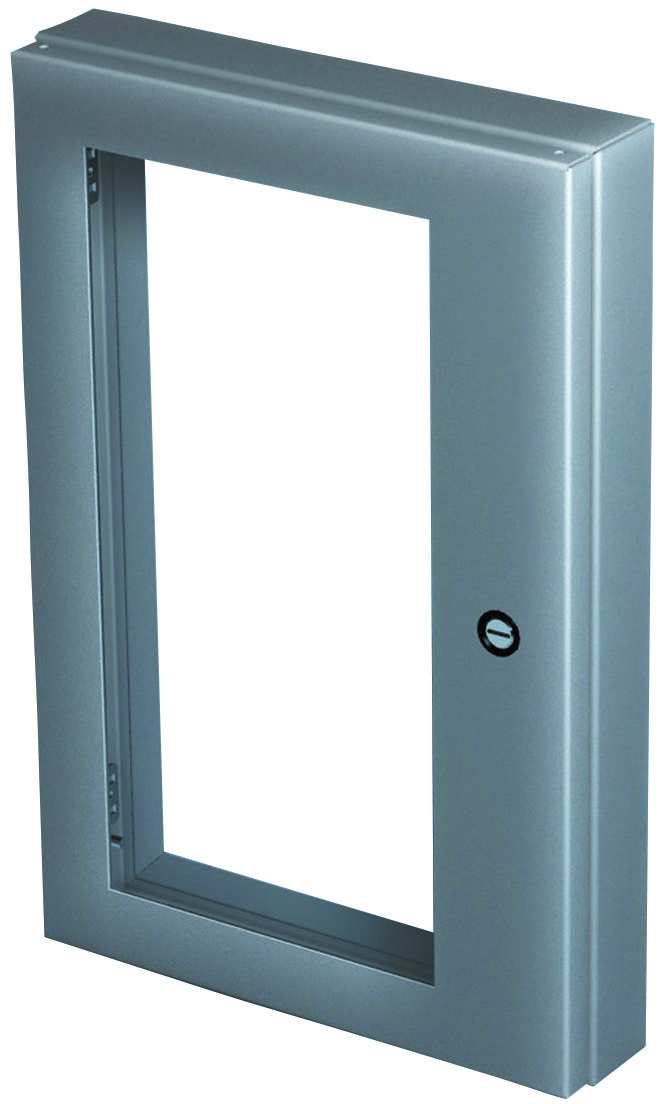

NVENT HOFFMAN AWDH2016N4 Deep Hinged Window Kit
Deep-hinged window kit provides protection, visibility, and easy access to equipment behind enclosures. Made from stainless steel or painted mild steel, these kits feature a .25-inch (6-mm) thick clear polycarbonate window for optimal viewing. Designed for Hoffman NEMA and Concept wall-mount enclosures, they include quarter-turn latches for quick access, gasket compression stops for flush mounting, and can be hinged on either side. The stainless steel version offers durability in harsh environments, while the mild steel option is finished with ANSI 61 gray polyester powder paint. Easy installation with included hardware.
NVENT HOFFMAN AWDH2016N4 Deep Hinged Window Kit Specifications:
- Material: Type 316L stainless steel or mild steel
- Finish: Unpainted brushed (#4) for stainless steel; ANSI 61 gray polyester powder paint for mild steel
- Window Material: .25-in. (6-mm) thick clear polycarbonate
- Depth: 2.5-in. (64-mm)
- Latching: Quarter-turn latch for quick access
- Mounting: Suitable for left or right hinged installation
- Includes: Mounting template and hardware
- Hinge: Clip-style hinge pin, easy to remove
- Design: Flush mounting with gasket compression stop, aesthetic appearance
- Application: Fits Hoffman NEMA and Concept wall-mount enclosures, with compatibility for larger enclosures
- Temperature Range: -55°F to 125°F (13°C to 52°C) for indoor use
- Industry Standards: UL 508A, CSA, NEMA/EEMAC Type 12, IEC 60529 IP66
Buy the Buy Hoffman Deep Hinged Window Kit Part Number AWDH2016N4 Online
Purchase the Hoffman Deep Hinged Window Kit online to ensure your industrial enclosures are protected and easy to access. Featuring .25-inch thick clear polycarbonate windows, quarter-turn latches, and versatile hinge options, this kit offers durability and aesthetic appeal. Made from Type 316L stainless steel or mild steel with a gray polyester powder finish, it withstands harsh environments while providing excellent visibility. Easily installed with included hardware, it’s ideal for Hoffman’s NEMA and Concept wall-mount enclosures, ensuring reliable protection, quick access, and a professional appearance.
Get Hoffman AWDH2016N4 today—designed for durable protection and easy access to components behind industrial enclosures.
