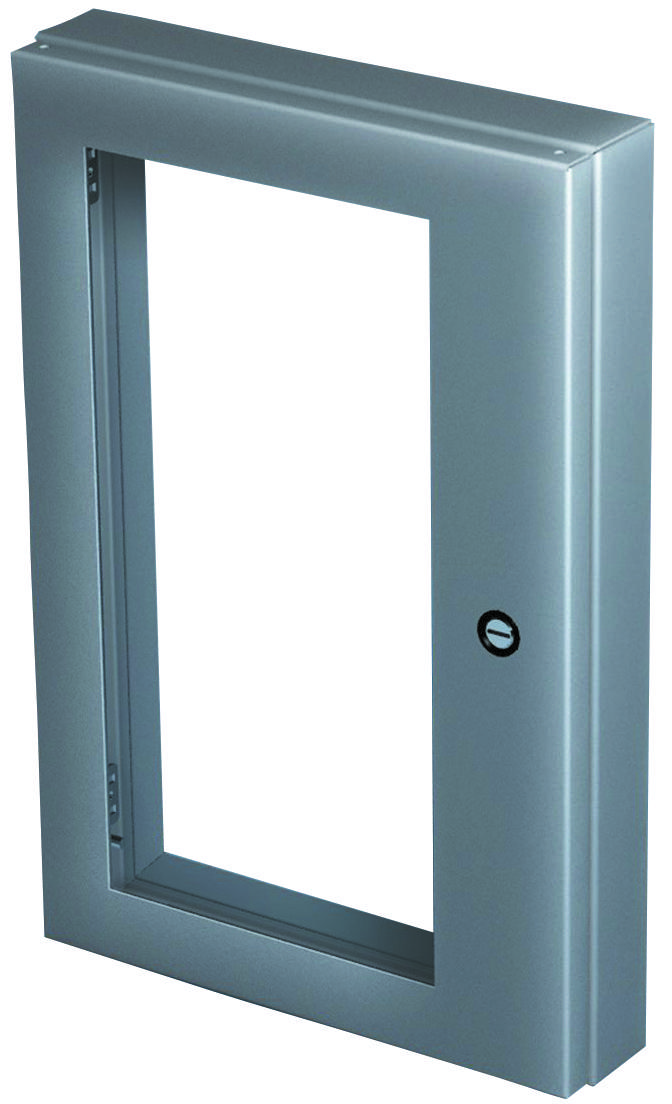

NVENT HOFFMAN AWDH2416N4SS Deep Hinge Window
Deep-hinged window kits provide protection, visibility, and easy access to equipment behind the viewing area. Made from Type 316L stainless steel with a #4 brushed finish or painted mild steel with ANSI 61 gray powder paint, these kits feature .25-in. thick clear polycarbonate windows, allowing clear visibility and durability. The kits support both left and right hinge mounting, include a mounting template and hardware, and are designed for easy installation with built-in gasket compression stops for flush mounting. They are ideal for rated enclosures requiring easy access and protection.
NVENT HOFFMAN AWDH2416N4SS Deep Hinge Window Specifications:
- Material: Type 316L stainless steel or painted mild steel
- Finish: #4 brushed finish (stainless steel), ANSI 61 gray polyester powder paint (mild steel)
- Window Thickness: 0.25 in. (6 mm) polycarbonate
- Depth: 2.5 in. (64 mm)
- Hinges: Easy-to-remove clip-style hinge pin, supports left or right hinging
- Gasket: Built-in gasket compression stop for flush mounting
- Includes: Mounting template and hardware
- Compliance: UL 508A, CSA, NEMA Type 4, 4X, 12 (stainless steel and painted versions)
- Application: Suitable for enclosures needing protection, visibility, and deep access to controls
- Temperature Range: Designed for indoor and outdoor use within typical industrial environments
Buy the Pentair Series Deep Hinged Window: AWDH2416N4SS
Purchase the Pentair Deep Hinge Window online today to ensure optimal access and protection for your industrial enclosure. Crafted from durable Type 316L stainless steel or painted mild steel, it features a .25-inch polycarbonate window for clear visibility. The kit includes all hardware and a mounting template for quick, straightforward installation. Its 2.5-inch depth accommodates deep controls, and the gasket stops allow flush mounting for a clean appearance. Ideal for environments demanding durability and easy access to internal components, supporting both left and right hinge configurations.
Get Pentair Deep Hinged Window today—designed for rugged protection, easy access, and lasting durability in industrial enclosures.
