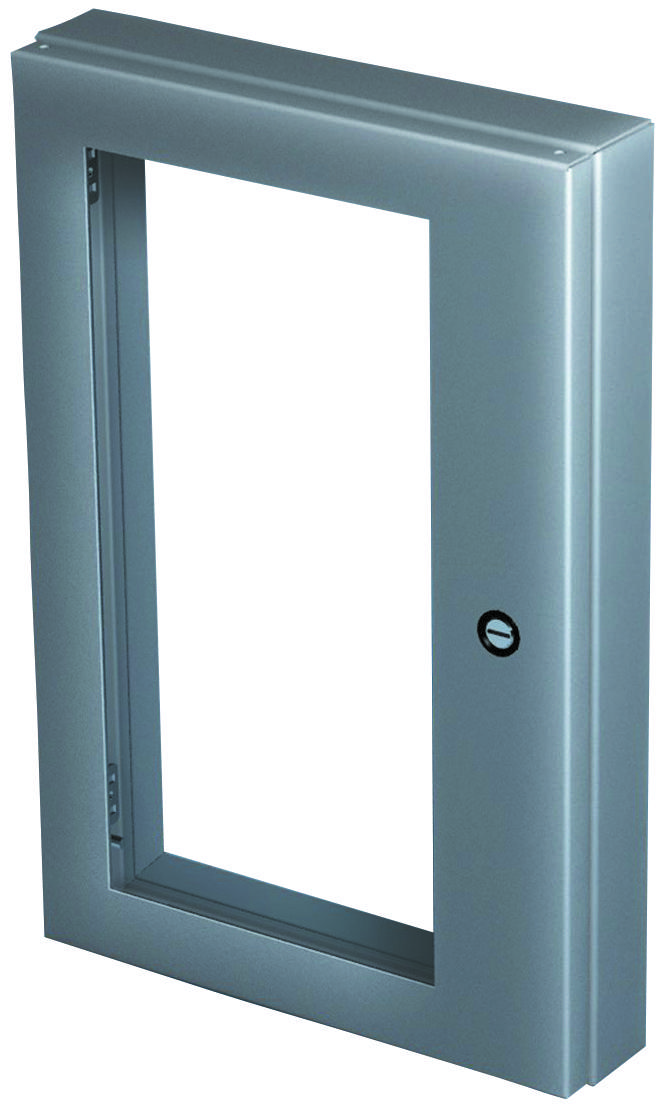

NVENT HOFFMAN AWDH2420N4 Deep-Hinged Window Kit
Deep-hinged window kits provide protection, visibility, and easy access to equipment behind viewing areas in enclosures. Made from Type 316L stainless steel or painted mild steel, these kits feature .25-in. thick clear polycarbonate windows for easy viewing and 2.5-in. depth to accommodate deep controls. They include built-in gasket compression stops for flush mounting, with options for left or right hinging. These kits are ideal for industrial enclosures requiring protection and easy maintenance, ensuring durability and high-quality visual access with quick latch mechanisms and comprehensive mounting hardware.
NVENT HOFFMAN AWDH2420N4 Deep-Hinged Window Kit Specifications:
- Material: Type 316L stainless steel or painted mild steel
- Window Material: .25-in. (6-mm) clear polycarbonate
- Depth: 2.5-in. (64-mm) for deep controls
- Finish: Unpainted brushed #4 stainless steel or ANSI 61 gray polyester powder paint
- Hinges: Clip-style hinge pin for left or right mounting
- Latching: Quarter-turn latches for quick access
- Includes: Mounting template and hardware for installation
- Gasket: Built-in compression stop for flush mounting
- Thickness: 0.25-in. (6-mm) viewing window
- Application: Suitable for NEMA, IEC, CSA standards, Type 12, 4, 4X, 3R enclosures
Buy the Buy PENTAIR Deep-Hinged Window Kit Part Number AWDH2420N4 Online
Purchase the PENTAIR Deep-Hinged Window Kit today to enhance your enclosure's protection, visibility, and accessibility. Crafted from Type 316L stainless steel or painted mild steel, it features a .25-inch clear polycarbonate window, providing excellent durability and clear viewing. The kit’s 2.5-inch depth accommodates deep controls, while the built-in gasket stop ensures flush mounting for a neat finish. Includes all hardware and mounting templates, allowing easy installation. Ideal for industrial environments, it guarantees high performance, corrosion resistance, and quick access for maintenance or operation tasks.
Get PENTAIR AWDH2420N4 today—designed for high durability and easy access with protective viewing windows in industrial enclosures.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN AWDH2420N4?
You can click on the BUY or RFQ button to purchase AWDH2420N4 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part AWDH2420N4?
You can download the AWDH2420N4 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of AWDH2420N4?
NVENT HOFFMAN
