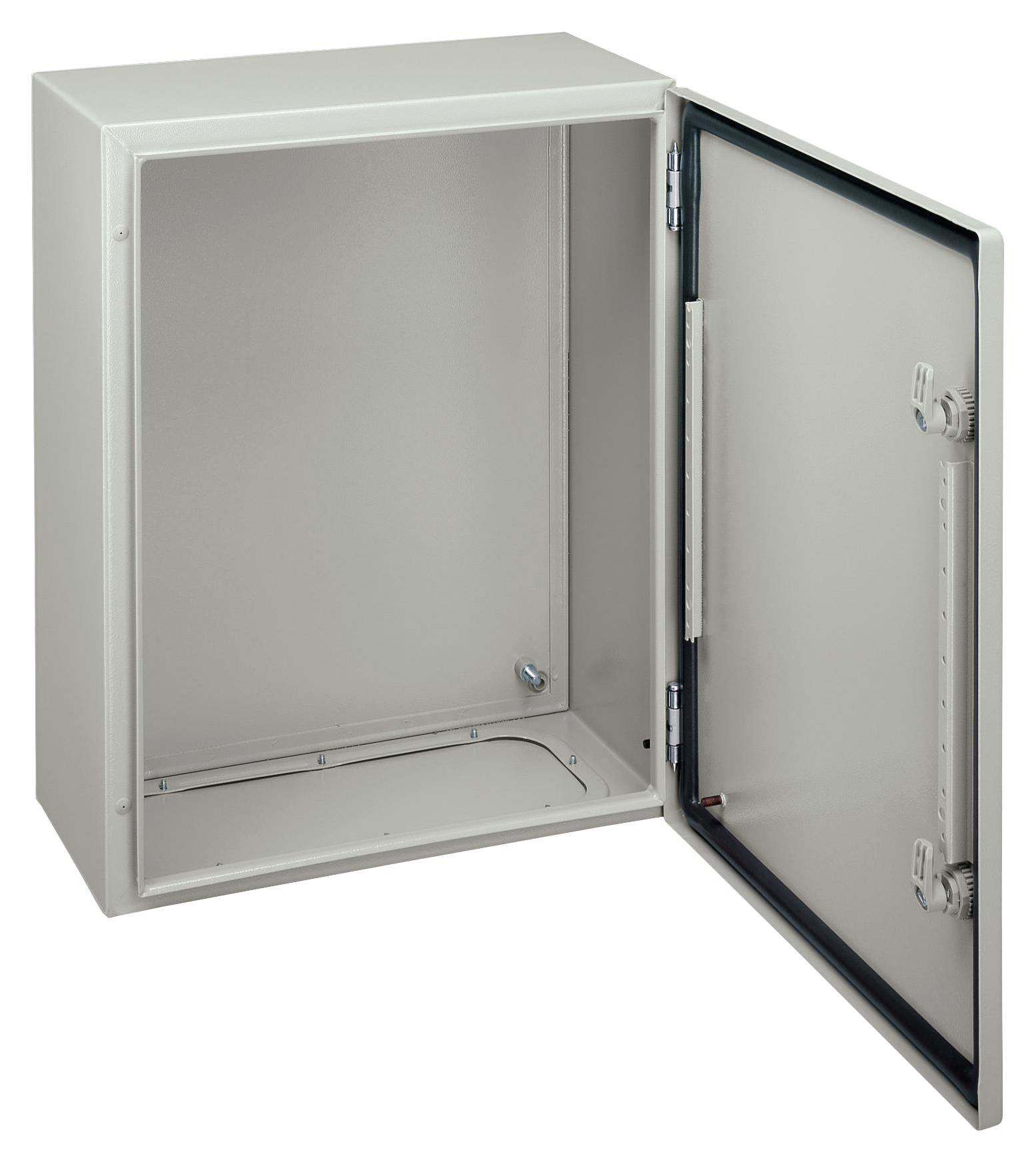

NVENT HOFFMAN CSD12106 Concept Enclosure
Concept wall-mount enclosures are durable electrical and control cabinets made of 14 or 16 gauge steel, featuring welded seams, seamless gaskets, and adjustable quarter-turn latches. Available in solid or window configurations, these enclosures provide excellent protection for machine control applications with UL, CSA, NEMA, and IEC IP66 standards compliance. They offer easy installation, customizable accessories, and a variety of sizes with finish options in ANSI 61 gray or RAL 7035 light-gray polyester powder paint, ensuring durability and aesthetic appeal for industrial environments.
NVENT HOFFMAN CSD12106 Concept Enclosure Specifications:
- Material: 14 or 16 gauge steel
- Seams: Welded and ground smooth
- Finish: ANSI 61 Gray or RAL 7035 Light Gray polyester powder paint inside and out
- Door: Removable with hidden hinges, 210° opening
- Latch: Quarter-turn slotted latch(es)
- Dimensions: Various sizes up to 3600x3600x1200 mm
- Standards: UL 508A, CSA C22.2 No. 94, NEMA Type 4, 12, 13, VDE IP66, IEC 60529
- Features: External formed body flange, mounting holes, gasketed door, grounding provisions, hardware kit
- Application: Suitable for machine control in industrial environments
- Accessories: Panels, handles, locks, mounting brackets, filters, customization options
- Protection: Ratings up to IP66, corrosion-resistant finishes, suitable for harsh environments
Buy the Hoffman Series Concept Enclosure: CSD12106
Enhance your industrial control solutions with Hoffman Concept Enclosures. Made from sturdy steel, these UL-listed, IP66 rated enclosures come in various sizes and finishes. They feature welded seams, easy-to-remove hinges, and quarter-turn latches for quick access. Suitable for machine control and harsh environments, with customization options including panels, locks, and accessories. With simple installation and durable finish options in ANSI 61 gray or RAL 7035, these enclosures deliver long-lasting performance and safety for your critical applications.
Order your Hoffman Series Concept Wall-Mount Enclosure today and give your control projects the dependable durability and flexibility they deserve.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN CSD12106?
You can click on the BUY or RFQ button to purchase CSD12106 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part CSD12106?
You can download the CSD12106 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of CSD12106?
NVENT HOFFMAN
