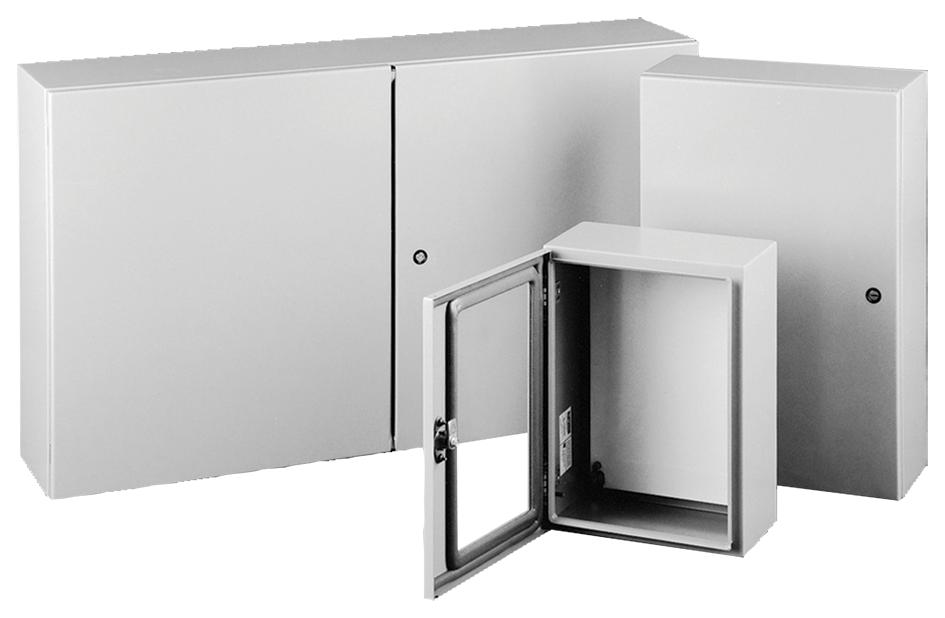

NVENT HOFFMAN CSD16166LG Wall-Mount Enclosure
The C-SD16166LG is a Concept wall-mount single-door enclosure designed for machine control applications. It features a streamlined design with flush quarter-turn latches and an attractive, durable finish. The enclosure is coated with RAL 7035 textured light-grey polyester powder paint on both interior and exterior surfaces. It has an IP66, NEMA/EEMAC-4, 12, and 13 protection rating, ensuring high environmental resistance. The seams are continuously welded and ground smooth, and the corner-formed doors provide a clean appearance. Easy-to-remove hinge pins with built-in captivation clips facilitate installation, while high-torque, thread-less studs and fasteners secure the door. The minimum-width body flange allows for maximum door opening of up to 210°. External formed body flanges and panel mounting studs enable attachment of optional panels and accessories. Mounting holes on the back of the enclosure support external wall-mount brackets. The removable door features hidden hinges for a sleek look. Additional features include a seamless foam-in-place gasket for sealing, quarter-turn slotted latches, and a door alignment device for enclosures wider than 30 inches. Enclosures up to 60 inches high have four hinges. Provision exists for an optional high-impact thermoplastic data pocket, and a hardware kit is included with panel mounting nuts, grounding hardware, and sealing washers. Suitable for industrial applications.
NVENT HOFFMAN CSD16166LG Wall-Mount Enclosure Specifications:
- Material: Mild steel with polyester powder paint coating
- Finish: RAL 7035 textured light-gray, inside and out
- Protection Rating: IP66, NEMA/EEMAC Type 4, 12, 13
- Seams: Continuously welded and ground smooth
- Doors: Corner-formed, with hidden hinges and removable pins
- Latch: Quarter-turn slotted
- Openings: Up to 210° door opening, provisions for external brackets
- Body Flange: Minimum width for maximum door swing
- Mounting: Back panels with holes for external brackets
- Enclosure Size: Up to 60 inches high, four hinges on larger units
- Gasket: Seamless foam-in-place
- Accessories: Hardware kit with nuts, grounding hardware, sealing washers
- Application: Industrial machine control, control panels
Buy the Pentair Series Concept: CSD16166LG Wall-Mount Enclosure
Secure your control equipment with the Pentair Series Concept CSD16166LG wall-mount enclosure. Featuring high environmental protection rating, seamless gasket sealing, and easy accessory integration, it’s ideal for industrial applications. Its rugged mild steel construction is finished with durable RAL 7035 textured powder coating, providing long-lasting corrosion resistance. The design includes hidden hinges, locking quarter-turn latches, and mounting provisions for external panels and brackets. Enhance your machinery safety and control panel organization by purchasing this superior enclosure online today.
Order your Pentair Series Concept CSD16166LG durable wall-mount enclosure today and ensure reliable protection for your industrial control components.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN CSD16166LG?
You can click on the BUY or RFQ button to purchase CSD16166LG from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part CSD16166LG?
You can download the CSD16166LG datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of CSD16166LG?
NVENT HOFFMAN
