NVENT HOFFMAN CSD242410W Wall-Mount Enclosure

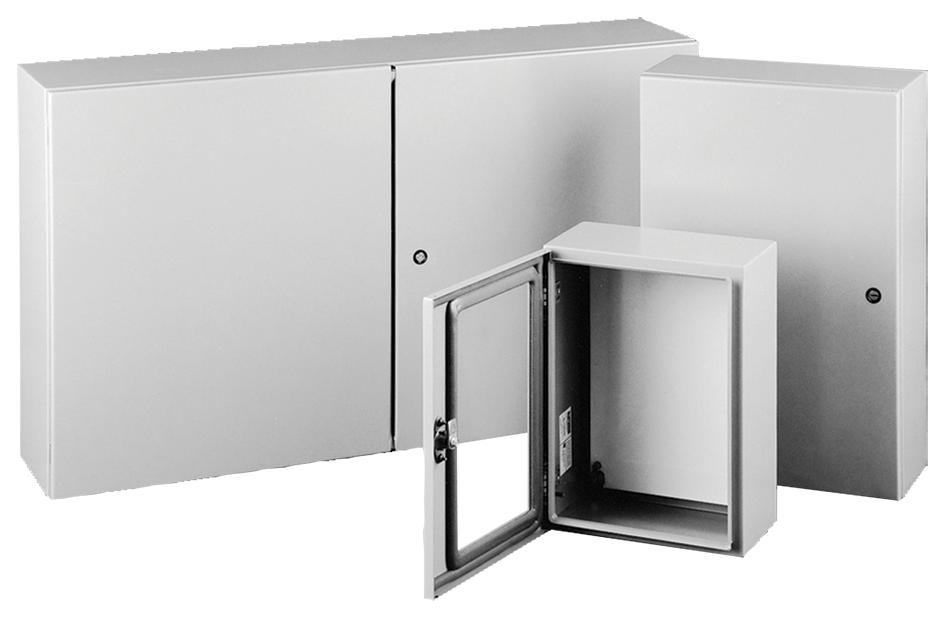

The C-SD242410W is a Concept wall-mount enclosure featuring a single door with windows, ideal for machine control applications. It boasts a sleek design with flush quarter-turn latches and a durable ANSI 61 grey polyester powder-coated finish both inside and out. The enclosure offers IP66, NEMA/EEMAC-4, 12, and 13 protection ratings, ensuring robust environmental resistance. It has seamlessly welded, smooth-ground seams, corner-formed doors, and a minimal-width body flange that allows for a 210° door opening. The door utilizes easy-to-remove hinge pins with built-in captivation clips and high-torque, thread-less studs and fasteners. External formed body flanges and panel mounting studs facilitate accessory attachment, while provisions are included for optional external wall-mount brackets. The removable door features hidden hinges for a clean appearance, with additional options such as a high-impact thermoplastic data pocket. The enclosure includes a seamless foam-in-place gasket, quarter-turn slotted latches, and hardware for panel mounting and grounding. Suitable for industrial environments, the enclosure ensures durability and versatility for machine control and equipment applications.
NVENT HOFFMAN CSD242410W Wall-Mount Enclosure Specifications:
- Material: Mild steel
- Finish: ANSI 61 gray polyester powder coat
- Protection Ratings: IP66, NEMA/EEMAC Type 4, 12, 13
- Seams: Seamlessly welded and ground smooth
- Doors: Corner-formed with hidden hinges
- Door opening: Max 210 degrees with minimal-width flange
- Hinges: Easy-to-remove, clip-style with captivation clips
- Fasteners: High-torque, thread-less studs and fasteners
- Gasket: Seamless foam-in-place
- Latches: Quarter-turn slot latches
- Provisions: External wall-mount brackets, panel mounting studs, grounding hardware
- Dimensions: 610 x 508 x 203 mm
- Protection: Suitable for industrial, machine control use
- Environmental Resistance: IP66, protection against dust and water ingress
- Finish: Durable polyester powder coat inside and out
Buy the Buy Pentair Concept Wall-Mount Enclosure Part Number CSD242410W Online
Secure your equipment with the Pentair Concept wall-mount enclosure. Featuring IP66 protection, a durable polyester finish, and easy access for maintenance, this versatile enclosure is ideal for machine control applications. Its seamless welded seams, corner-formed doors, and internal provisions make installation straightforward. The enclosure's stylish design with hidden hinges and quarter-turn latches ensures a clean appearance. Buy online now to benefit from a tough, corrosion-resistant, and customizable control solution suitable for demanding industrial environments.
Buy Pentair CSD242410W now and experience unmatched durability and environmental protection for your industrial control needs.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN CSD242410W?
You can click on the BUY or RFQ button to purchase CSD242410W from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part CSD242410W?
You can download the CSD242410W datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of CSD242410W?
NVENT HOFFMAN
