NVENT HOFFMAN CSD302412 Wall-Mount Enclosure
The CSD302412 is a Concept™ single-door wall-mount enclosure designed for machine control applications. It features streamlined styling with flush quarter-turn latches and a durable, attractive finish. The enclosure has a three-point latch system for sizes 42 inches and above, with quarter-turn and slotted latches. It is finished internally and externally with ANSI 61 grey polyester powder coating. The enclosure offers IP66, NEMA/EEMAC-4, 12, and 13 protection ratings. Seams are continuously welded and ground smooth, with corner-formed doors for enhanced durability. It includes easy-to-remove hinge pins with built-in capture clips, high-torque thread-less studs on the door, and a minimal-width body flange providing up to 210° door opening. An external formed body flange, mounting studs for optional panels and accessories, and back mounting holes are included. The removable door features hidden hinges for a clean aesthetic, and a seamless foam-in-place gasket ensures sealing. Additional features include door alignment devices for wider doors, four hinges on 60-inch-high enclosures, grounding studs, bonding provisions, and optional high-impact thermoplastic data pockets.
NVENT HOFFMAN CSD302412 Wall-Mount Enclosure Specifications:
- Material: Steel with ANSI 61 grey polyester powder coating
- Protection Ratings: IP66, NEMA 4, 12, and 13
- Seamless welding: Continuous welds, ground smooth
- Door features: Hidden hinges, quarter-turn/slotted latch system, three-point latch on larger sizes
- Door opening: Up to 210° with minimal-width flange
- Construction: Corner-formed doors, welded seams, high-torque thread-less studs
- Body flange: External formed flange for watertight seal
- Mounting: Back holes for external mounting, studs for panel/accessories
- Size: 30.00 x 24.00 x 12.00 inches (762 x 610 x 305 mm)
- Finish: Internally and externally with ANSI 61 grey polyester powder coating
- Additional features: Door alignment devices, four hinges on 60-inch enclosures, grounding studs, optional data pockets

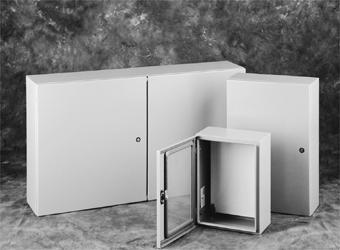

Buy the Hoffman Series Concept CSD302412 Wall-Mount Enclosure: 30.00 x 24.00 x 12.00 inches
Purchase the Hoffman Concept wall-mount enclosure online today and ensure reliable protection for your electrical components. Crafted with durable steel and finished with ANSI 61 grey polyester powder coating, this enclosure features seamless welds and a foam-in-place gasket for dust and water-tight sealing. Its minimal-width flange allows up to 210° door opening, with hidden hinges for a clean look. Ideal for machine control, it includes mounting studs, back holes for external mounting, and optional accessories like data pockets. Order now for premium industrial enclosure solutions.
Get Hoffman CSD302412 today—built for precision and long-lasting durability in industrial control panels.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN CSD302412?
You can click on the BUY or RFQ button to purchase CSD302412 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part CSD302412?
You can download the CSD302412 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of CSD302412?
NVENT HOFFMAN
