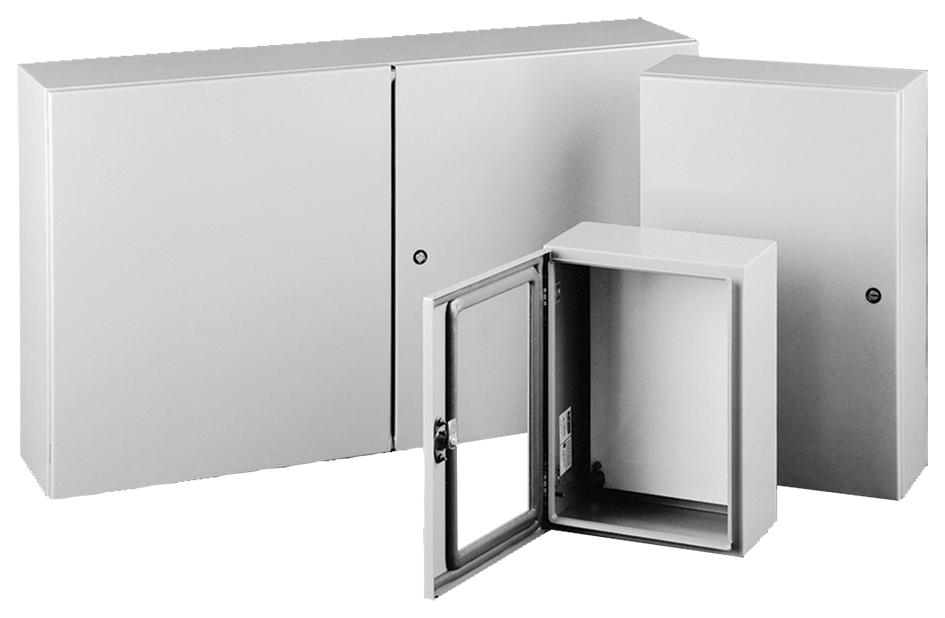

NVENT HOFFMAN CSD36368 Wall Mount Enclosure
The product is a robust steel wall-mount enclosure designed for industrial control applications, offering Type 4, 12, and 13 protection standards. It features seamless welds, ground smooth seams, and corner-formed doors for enhanced durability. The enclosure includes adjustable hinges, quarter-turn latches, and provisions for external wall-mount brackets. Available in various sizes and finishes such as ANSI 61 Gray and RAL 7035 Light Gray, it provides full-width access, interchangeable doors, and optional accessories like mounting panels and lock inserts, ideal for harsh environments requiring reliable protection.
NVENT HOFFMAN CSD36368 Wall Mount Enclosure Specifications:
- Material: Mild steel, 14, 16 or 18 gauge
- Protection Standards: UL 508A, cUL, NEMA Types 4, 12, 13, VDE IP66/IP55
- Finish: ANSI 61 Gray or RAL 7035/7095 Light Gray polyester powder paint
- Seam: Continuously welded and ground smooth
- Doors: Corner-formed with interchangeable design, with quarter-turn slats and adjustable hinges
- Dimensions: Based on model, typical sizes range from 305x305 mm to 914x914 mm
- Mounting: External wall-mount brackets, panel mounting studs, grounding provisions
- Sealing: Foam-in-place gasket for waterproofing
- Access: Full-width doors with overlapping design in two-door models
- Hardware: Hardware kit includes mounting nuts, grounding hardware, and sealing washers
- Finish: Durable polyester powder coating, standard colors ANSI Gray and RAL Light Gray
- Features: Removable doors, hidden hinges, door alignment device, panel mounting studs for accessories
- Application: Suitable for machine control, harsh environment use, industrial equipment
Buy the Buy Hoffman Wall Mount Enclosure Part Number CSD36368 Online
Order the Hoffman Wall Mount Enclosure CSD36368 today for reliable control panel protection. Designed with durable steel, seamless welds, and waterproof gasket sealing. Ideal for industrial environments, it features easy-to-open doors, adjustable hinges, and a rugged polyester powder finish in ANSI Gray. This enclosure offers full-width access and interchangeable doors for maintenance convenience. Complete with mounting hardware, panels, and accessories, it ensures versatile installation and long-term durability, making it the perfect choice for demanding control system applications.
Get Hoffman CSD36368 today—built for durability, IP66/IP55 protection, and easy installation in harsh environments.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN CSD36368?
You can click on the BUY or RFQ button to purchase CSD36368 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part CSD36368?
You can download the CSD36368 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of CSD36368?
NVENT HOFFMAN
