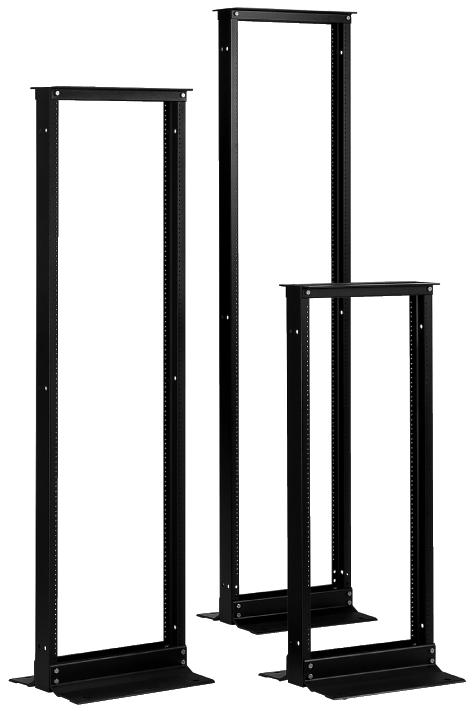

NVENT HOFFMAN EVR19FM45U Open Frame Rack
The EVR19FM45U is a durable, high-capacity two-post open frame rack designed for network, server, and telecommunication applications. Constructed from lightweight aluminum (6063-T6 alloy), it features industry-standard RU markings on both sides for easy equipment installation. The rack is available in various heights up to 9 ft., with load ratings of up to 1000 lb., and options for cable management. Finished in black polyester powder paint or milled aluminum, it complies with UL 2416 and cUL standards, offering a reliable solution for structured cabling and equipment mounting.
NVENT HOFFMAN EVR19FM45U Open Frame Rack Specifications:
- Material: Aluminum 6063-T6 alloy
- Finish: RAL 9005 black polyester powder paint or milled aluminum
- Frame Height: 45U (up to 9 ft.)
- RU Markings: Yes on front and back
- Load Rating: 1000 lb. (453.6 kg)
- Side Rails: Tapped with 12-24UNC threads
- Vertical Hole Pattern: 5/8 in. - 5/8 in. - 1/2 in.
- Dimensions: EIA 310-D standard, width: 19-in.
- Assembly: Unassembled, hardware included
- Application: Networking, server, telecommunication rooms
- Standards: UL 2416, cUL, EIA 310-D
- Cable Management: Optional, includes cable managers
- Shelf Options: Vented and solid shelves, adjustable height
Buy the Buy PENTAIR EVR19FM45U Part Number EVR19FM45U Online
Enhance your network infrastructure with the PENTAIR open frame rack EVR19FM45U. Crafted from lightweight yet sturdy aluminum, it supports up to 1000 lb. and features industry-standard RU markings for easy equipment installation. The rack suits server, telecommunication, and network applications, offering adjustable heights up to 9 ft., with options for cable management to maintain organized cabling. Finished in durable black or milled aluminum, it complies with UL 2416 and cUL standards, ensuring reliable performance for critical infrastructure.
Order your Pentair Series EVR19FM45U open frame rack today and ensure your networking and server setups are sturdy, organized, and easily accessible.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN EVR19FM45U?
You can click on the BUY or RFQ button to purchase EVR19FM45U from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part EVR19FM45U?
You can download the EVR19FM45U datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of EVR19FM45U?
NVENT HOFFMAN
