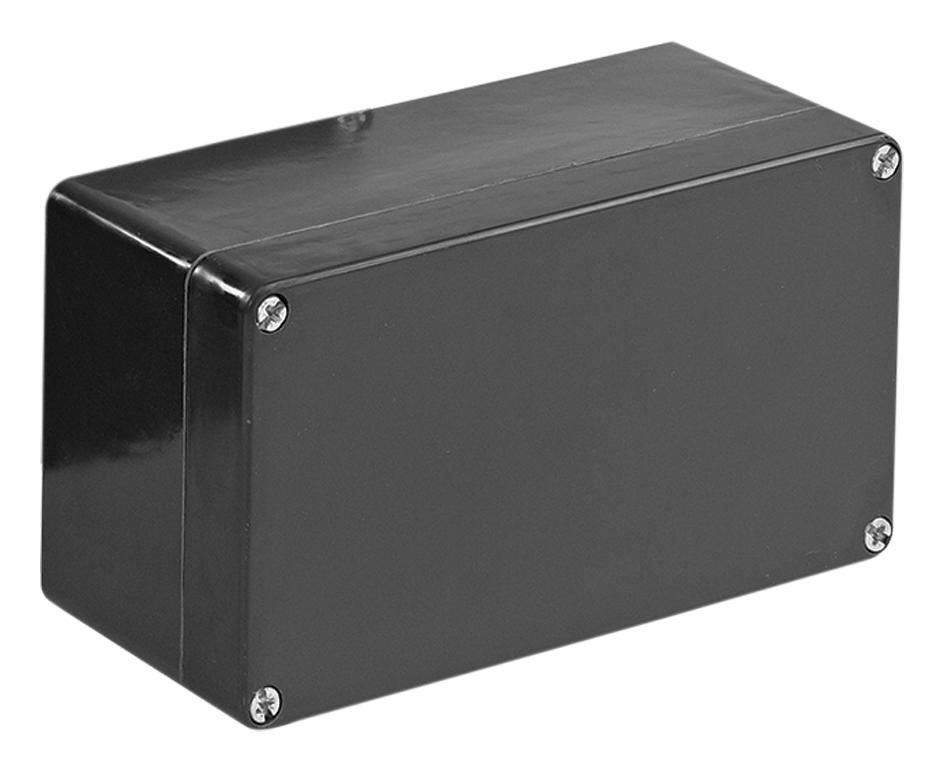

NVENT HOFFMAN EXE56016090 Hazardous Location Enclosure
The ZONEX Non-Metallic Terminal Enclosure by Pentair is designed for hazardous locations and complies with industry standards including ATEX, IECEx, and UL. Made from compression-molded fiberglass with high-impact strength and high-temperature resistance, it provides excellent protection for field wiring and equipment in corrosive or explosive environments. Its recessed cover features stainless steel screws, a high-temperature silicon gasket, and mounting inserts for DIN or panel mounting. Optional steel or composite panels enhance versatility, making it ideal for Zone 1 and Zone 2 applications with IP66 sealing for contamination protection.
NVENT HOFFMAN EXE56016090 Hazardous Location Enclosure Specifications:
- Material: Compression-molded fiberglass with static charge agents
- Impact Resistance: High-impact strength
- Temperature Rating: -50°C to +100°C
- Finish: Low-gloss black molded surface, stainless steel screws
- Sealing: Silicon gasket within labyrinth seal
- Mounting: DIN and panel-mounting options with inserts
- Optional Panels: Steel or composite, 1.5mm or 2mm thick
- Certification: ATEX, IECEx, UL, CSA, NEMA 4X, IP66
- Service Temperature: -50°C to +100°C
- Standards: EN60079-0, EN60079-7, EN60079-31
Buy the Buy Pentair Hazardous Location Enclosure Part Number EXE56016090 Online
Secure your hazardous environment electrical needs with the Pentair Hazardous Location Enclosure. Crafted from durable fiberglass, it offers high impact resistance, IP66 sealing, and compliance with industry standards like ATEX, IECEx, UL, and CSA. Its design incorporates a silicon gasket, stainless steel screws, and optional steel or composite panels for customization. Suitable for Zone 1 and Zone 2 zones, this enclosure provides excellent protection against corrosive contaminants and explosive atmospheres. Trust this reliable, certified enclosure for safe, long-lasting operations in demanding environments.
Order your Pentair Hazardous Location Enclosure EXE56016090 today and protect your electrical components in corrosive and explosive environments with reliable durability.
