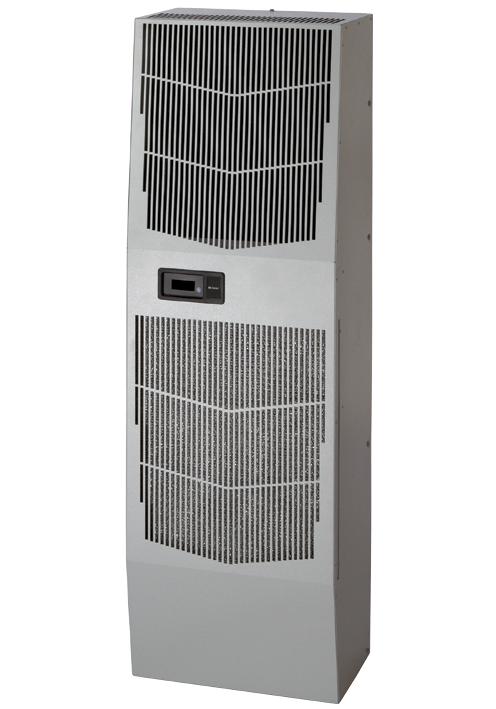

NVENT HOFFMAN G520816G050 Sealed Enclosure Cooler
The Purair SpectraCool is a precision-engineered sealed enclosure cooling unit designed for indoor and outdoor applications. It features dust-resistant coils, energy-efficient rotary compressors, and is available with galvanized or stainless steel housing. The unit supports multiple power input options (115, 230, 400/460 VAC, 3-phase) and includes advanced thermal management capabilities with optional heat packages. Its rugged design, corrosion-resistant components, and easy installation make it ideal for industrial automation, telecommunications, waste treatment, security systems, and more, ensuring reliable operation in challenging environments.
NVENT HOFFMAN G520816G050 Sealed Enclosure Cooler Specifications:
- Cooling Capacity: 4000/6000 BTU/Hr (1172/1758 W), 8000/12000 BTU/Hr (2344/3516 W), 20000 BTU/Hr (5861 W)
- Operating Temperature Range: -40 F/-40 C to 131 F/55 C
- Power Input: 115, 230, 400/460 VAC, 3-phase
- Refrigerants Supported: R407C, R134a, R410A, R134a
- Refrigerant Charge: 20/587 grams, 38/1077 grams, or 50/1417 grams depending on model
- Electrical Frequency: 50/60 Hz
- Material: Galvanized steel, stainless steel optional
- Finish: RAL 7035 semi-textured powder coat
- Sealing: Type 12, 3R, 4, with optional Type 4X stainless steel
- Dimensions (Approximate): Height 28.55 inches / 725 mm, Width 6.97 inches / 177 mm, Depth 10.10 inches / 256 mm
- Weight: Approximately 84.7 lbs / 38.4 kg
- Certifications: UL/cUL Listed, CE, EAC
- Additional Features: Dust-resistant coils, cleanable aluminum inlet filter, easy mounting, optional recessed mounting, corrosion-resistant components
Buy the Buy PENTAIR SpectraCool Part Number G520816G050 Online
Purchase the PENTAIR SpectraCool G520816G050 online for reliable thermal management in industrial automation, telecom, and outdoor systems. This rugged cooling unit features dust-resistant coils, energy-efficient compressors, and corrosion-resistant housing suitable for challenging environments. Easy to install with flexible mounting options, it supports multiple power inputs and refrigerants. Ensure your enclosure stays cool and protected with this high-performance, UL-listed solution designed for maximum durability and dependable operation in demanding applications.
Get PENTAIR SpectraCool G520816G050 today—built for precision cooling and long-lasting durability in harsh environments.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN G520816G050?
You can click on the BUY or RFQ button to purchase G520816G050 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part G520816G050?
You can download the G520816G050 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of G520816G050?
NVENT HOFFMAN
