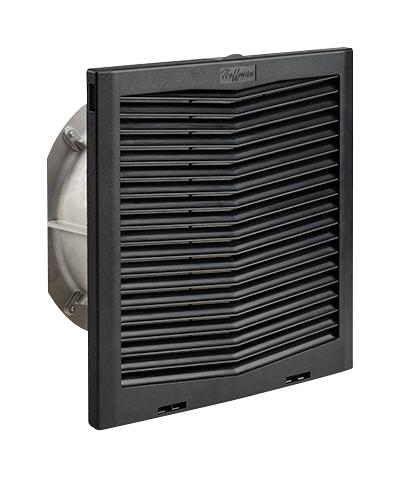

NVENT HOFFMAN HF1326413R Side-Mount Filter Fan

The HF1326413R is a side-mount filter fan from Hoffman Enclosures, designed for efficient ventilation in industrial environments. It offers a airflow of 395 CFM (671 m³/hr) with a click-fit installation that requires no tools or screws, allowing quick and easy filter replacement. The fan features a flip-open grille for maintenance access and can be wall-mounted on the enclosure side. It includes a standard rope gasket to ensure a proper seal and offers a reverse airflow option on HF13 models to push or pull air through higher static pressure. The unit is constructed from UV-resistant plastic, is rated IP54, and operates on 230V at 50/60Hz with a nominal current of 0.34/0.37A and power consumption of 74/80W. Its dimensions are 12.8 x 12.82 x 6.30 inches, weighing 4.25 pounds. The fan is certified UL (E482010), CE, and EAC, suitable for temperatures from -10°C to 55°C, and features optional thermostat control for energy efficiency. It is commonly used in industrial automation, automotive assembly, package handling, food and beverage processing, and wind energy systems.

View HF1326413RDatasheet [pdf]

Buy the Hoffman Series HF13 Side-Mount Filter: HF1326413R

Enhance your industrial ventilation system with the Hoffman Side-Mount Filter Fan, model HF1326413R. It provides 395 CFM airflow, IP54 rated protection, and easy installation without tools. Its UV-resistant plastic housing ensures durability in harsh environments, while certifications like UL, CE, and EAC guarantee quality and safety. With a compact size of 12.8 x 12.82 x 6.30 inches and weight of only 4.25 pounds, this fan is suitable for industrial automation, automotive, and wind energy applications. Upgrade your system today for reliable airflow management and energy-efficient operation.

Buy Hoffman HF1326413R now and experience unmatched reliability and performance in industrial ventilation solutions.
