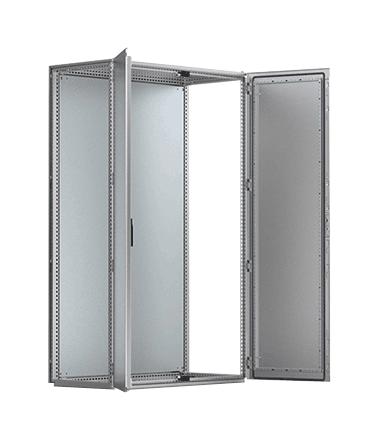

NVENT HOFFMAN MCDS20126 Stainless Steel Enclosure
The MCDS stainless steel double door enclosure offers a space-saving, combinable solution for industrial environments. Made from AISI 304L or AISI 316L stainless steel, it features a robust IP 55 protection rating and IK 10 impact resistance. The enclosure's double doors with 4-point locking facilitate easy access and high load capacity, suitable for confined spaces. Equipped with removable roof, two-piece bottom plates with polyurethane sealing, and adjustable mounting plate, it ensures durability, safety, and versatile installation options in industrial automation and electrical control systems.
NVENT HOFFMAN MCDS20126 Stainless Steel Enclosure Specifications:
- Material: AISI 304L or AISI 316L stainless steel
- Frame: 1.5 mm thick, seam welded with 25 mm hole pattern according to DIN 43660
- Doors: 2 mm thick with four hinges, non-reversible, includes 4-point locking system
- Rear, roof, and side panels: 1.5 mm thick; bottom plates: 1.5 mm; mounting plate: 3 mm galvanized steel
- Protection Degree: IP 55; Type 12, 13; IK 10 impact resistance
- Dimensions (HxWxD): 2000 mm x 720 mm x 600 mm; Mounting plate: 1094 mm wide, adjustable in steps of 25 mm
- Bottom plates: Two-piece, sealed with polyurethane gasket; roof panel: removable; side panels: optional accessories
- Locking: Espagnolette 4-point in main door, 2-point in slave door; standard double-bit lock with 3 mm insert; other accessories available
- Earthing: Panels grounded via fittings and separate earthing stud; finish: pre-grained stainless steel
- Delivery: Includes frame, doors, rear panel, roof, bottom plates, mounting plate; protective pallet; recyclable packing material
Buy the Buy Hoffman Stainless Steel Enclosure Part Number MCDS20126 Online
Secure your industrial equipment with the highly durable Hoffman stainless steel double door enclosure. Designed for confined spaces, it offers IP 55 protection, robust locking mechanisms, and corrosion-resistant materials. Easy to install and maintain, this enclosure features a removable roof, adjustable mounting plate, and impact resistance up to IK 10. Ideal for industrial automation, electrical control systems, and harsh environments, ensure your project’s safety and longevity by ordering this versatile enclosure online today.
Order your Hoffman Series MCDS20126 stainless steel double door enclosure today, ensuring corrosion resistance and reliable protection for your industrial projects.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN MCDS20126?
You can click on the BUY or RFQ button to purchase MCDS20126 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part MCDS20126?
You can download the MCDS20126 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of MCDS20126?
NVENT HOFFMAN
