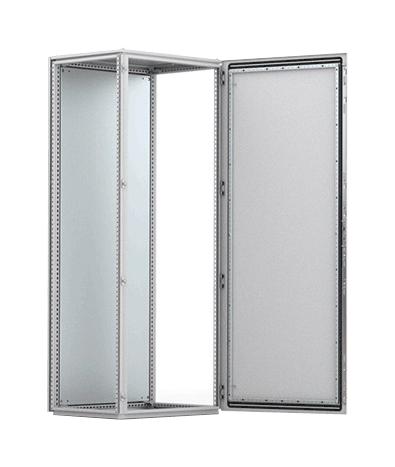

NVENT HOFFMAN MCS20068R5 industrial enclosure
The mild steel single door combinable enclosure is designed for industrial applications, offering IP 55 protection against dust and water ingress. Constructed with 1.5 mm and 2 mm painted steel panels, it features a robust structure including a door with four hinges for versatile opening, a 4-point espagnolette lock, and a galvanized steel mounting plate. The enclosure is powder-coated with RAL 7035, earthing-ready, and includes removable roof and side panels. Suitable for versatile installations, it ensures durability and safety in demanding environments, with detailed dimensions for customization and assembly.
NVENT HOFFMAN MCS20068R5 industrial enclosure Specifications:
- Material: Frame 1.5 mm painted steel, door 2 mm painted steel, rear, roof, side panels 1.5 mm painted steel, mounting plate 3 mm galvanized steel, bottom plates 1 mm galvanized steel
- Protection: IP 55, TYPE 12, 13, IK 10
- Finish: RAL 7035 structured powder coating
- Lock: 4-point espagnolette locking system with double-bit lock and 3 mm insert
- Hinges: Four hinges allowing left or right hand opening
- Mounting plate: Double folded, adjustable in depth by steps of 25 mm
- Earthing: Panels earthed via fittings with separate earthing stud
- Delivery includes: Frame with door, rear, roof panels, bottom plates, mounting plate; optional side panels and accessories
- Dimensions: Vary by model, e.g., 1800 mm height, 600-800 mm width, 500-600 mm depth; detailed in product list
- Additional features: Removable roof, side panels as accessories, recyclable packaging
Buy the Hoffman MCS20068R5 – Reliable Industrial Enclosure for Industrial Applications
Order the Hoffman MCS20068R5 industrial enclosure online today and enhance your facility's safety and durability. Designed with high-quality painted steel and featuring IP 55 protection, this enclosure is ideal for various industrial setups. Its robust construction includes a four-point lock system, removable roof, and adjustable mounting plate, ensuring easy installation and maintenance. Suitable for indoor and outdoor use, it ensures component safety against dust and water ingress. Secure yours now for reliable, long-lasting performance in demanding conditions.
Buy Hoffman MCS20068R5 enclosure now and experience unmatched durability, versatile installation, and top-level protection for industrial environments.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN MCS20068R5?
You can click on the BUY or RFQ button to purchase MCS20068R5 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part MCS20068R5?
You can download the MCS20068R5 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of MCS20068R5?
NVENT HOFFMAN
