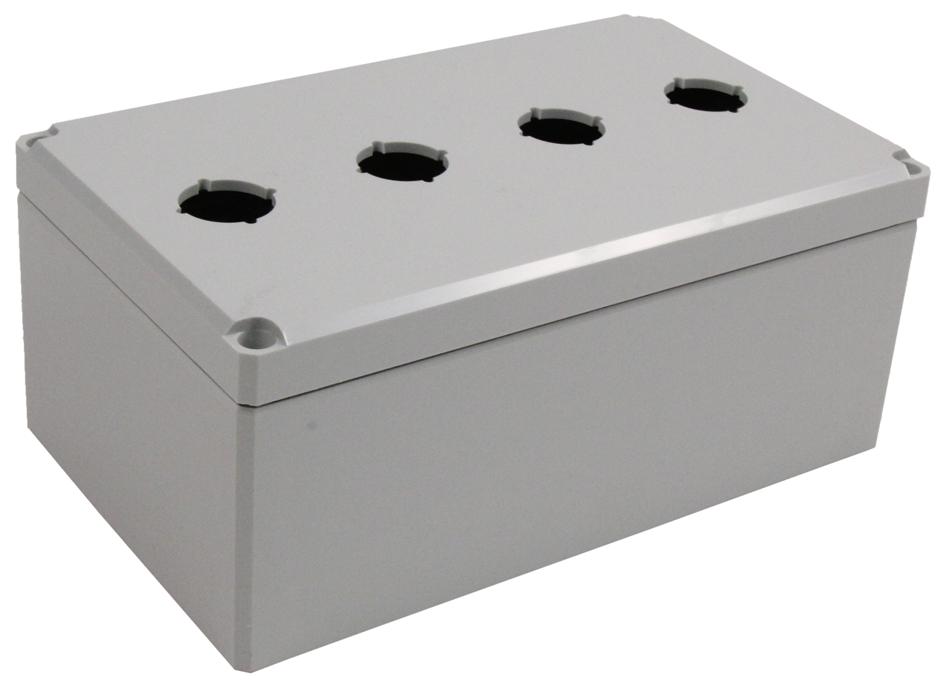

NVENT HOFFMAN Q4PBPCDM Industrial Pushbutton Enclosure
The Q4PBPCDM is a type-4X QLINE™ D pushbutton enclosure designed for reliable insulation and housing of pushbuttons in challenging environments. Constructed from high-impact polycarbonate with a light-grey finish on both the inside and outside, it features a contoured body with flush cover screws for a modern appearance. The durable polycarbonate material is easily punched, drilled, filed, or sawed. Its straight side walls allow for ganging multiple enclosures, and the cross-point captivated stainless steel cover screws are protected by removable caps for aesthetic appeal and tamper resistance. Moulded internal pads facilitate the mounting of optional panels, rails, or other components. The enclosure offers a seamless foam-in-place gasket for a water- and dust-tight seal, and it is supplied with mounting hardware. Certified with an IP67 rating and halogen-free, this enclosure is suitable for industrial applications. It includes the enclosure, hardware kit, hinge kit, and mounting bracket kit.
NVENT HOFFMAN Q4PBPCDM Industrial Pushbutton Enclosure Specifications:
- Material: High-impact polycarbonate, light-grey finish RAL 7035
- Standards: UL 508A, UL 94V-0 flammability, IP67, NEMA 4X
- Screws: Stainless steel cross-point captivated with tamper-resistant removable caps
- Features: Contoured body, flush cover screws, molded internal mounting pads, foam-in-place gasket
- Mounting: Hardware included, adjustable mounting holes adjacent to cover screws
- Size: Suitable for 22.5 mm pushbuttons, with water- and dust-tight sealing
- Applications: Industrial environments requiring reliable, corrosion-resistant housing
- Certification: UL, cUL, NEMA 4X, IP67, CSA, IEC 60529
Buy the PENTAIR Q4PBPCDM – Reliable Industrial Pushbutton Enclosure for Challenging Environments
Order the PENTAIR Q4PBPCDM multifunctional industrial enclosure online today. It offers exceptional durability, IP67 sealing, and tamper-resistant features, making it ideal for challenging industrial environments. With internal mounting pads, a seamless gasket, and stainless steel screws, this enclosure ensures long-lasting performance. Easy to install with included hardware, it is certified UL and NEMA 4X, providing a reliable solution for protecting pushbutton controls. Buy online now for quick delivery and secure handling, perfect for automation and control applications.
Get PENTAIR Q4PBPCDM today—built for industrial resilience and secure pushbutton housing.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN Q4PBPCDM?
You can click on the BUY or RFQ button to purchase Q4PBPCDM from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part Q4PBPCDM?
You can download the Q4PBPCDM datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of Q4PBPCDM?
NVENT HOFFMAN
