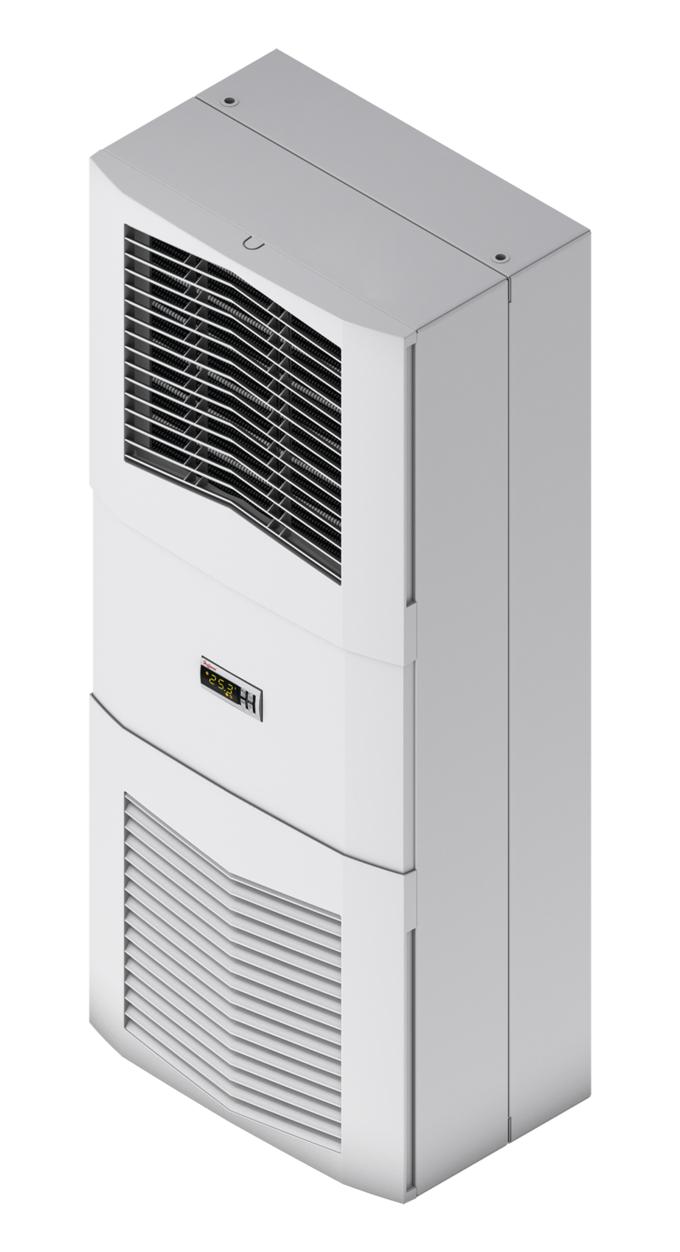

NVENT HOFFMAN S060516G050 Indoor Cooling Unit
The SpectraCool Slim Fit indoor air conditioners are designed for sealed enclosure cooling in industrial and electronic environments. They feature UL and EAC approvals, dust-resistant coils, and easy filter replacement for dusty conditions. Models range from 1000 to 13500 BTU per hour, with power options from 300 to 4000 Watts. These units incorporate eco-friendly refrigerant R134a, have a sleek powder-coated finish, and support remote access with Ethernet/IP and Modbus TCP/IP communication. Suitable for various mounting configurations including recessed and surface mount, they provide reliable thermal management for sensitive equipment.
NVENT HOFFMAN S060516G050 Indoor Cooling Unit Specifications:
- Cooling Capacity: 1000/1700 BTU/hr (300/500 W), 3400/5000 BTU/hr (1000/1500 W), 6800/8500/13500 BTU/hr (2000/2500/4000 W)
- Refrigerant: R134a, Earth-friendly, with refrigerant charge from 4.7 oz to 30 oz
- Operating Temperature Range: from 50°F/10°C to 131°F/55°C
- Air Flow: Internal loop at 50Hz (up to 207 CFM), External loop (up to 339 CFM), at 60Hz (up to 230 CFM internal, 341 external)
- Electrical: Compatible with 115V, 230V, 400/460V, 50/60Hz; Max power consumption from 130W to 2310W; Max current from 3.2A to 28A
- Units constructed from galvanized sheet metal with powder coat semi-textured RAL 7035 finish, designed for easy installation and maintenance
- Protection: UL Type 12, IP54 internal, IP34 external; includes optional communication board, door switch shutdown, alarm outputs
- Dimensions: Heights from 21.67 inches (550mm) to 62 inches (1580mm), widths from 11 inches (280mm) to 15.7 inches (400mm), depths from 10.2 inches (260mm) to 13.5 inches (340mm)
- Sound Levels: Between 66-69 dB(A) at 1.5 meters
- Mounting Options: Surface, partial, and full recess mount with downloadable CAD drawings for integration
Buy the Buy SpectraCool Indoor Cooling Part Number S060516G050 Online
Secure your electronic or industrial enclosure with the SpectraCool indoor cooling system. Designed for various mounting options, these units provide efficient, eco-friendly cooling up to 13500 BTU/hr. Featuring remote access control via Ethernet/IP, they are easy to install, maintain, and adapt to dusty environments with dust-resistant coils and simple filter replacements. Compatible with multiple power inputs, these units offer reliable thermal management ensuring smooth operation of your sensitive equipment. Buy online today and experience dependable cooling performance for your enclosure needs.
Order your SpectraCool Series S060516G050 indoor cooling unit today and ensure reliable thermal management for your sensitive equipment.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN S060516G050?
You can click on the BUY or RFQ button to purchase S060516G050 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part S060516G050?
You can download the S060516G050 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of S060516G050?
NVENT HOFFMAN
