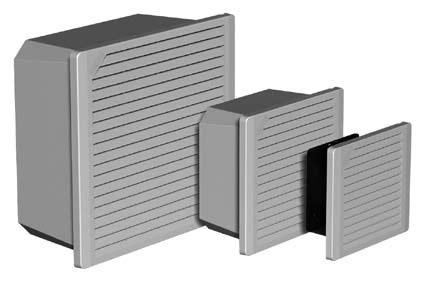

NVENT HOFFMAN TFP61UL12 Enclosure Cooling Fan
The TFP61UL12 is a Type-12 composite fresh air enclosure cooling filter fan offering reliable cooling for limited space enclosures. It features a black ABS composite grille and provides filtered airflow suitable for basic cooling needs. Engineered for durability, it can operate continuously for 50,000 hours without lubrication or extensive maintenance, with monthly checks recommended. The fan includes a disposable filter, dynamically balanced polycarbonate impellers, and power leads stripped 1/2 inch (12 mm). All mounting hardware and installation instructions are included, making it ideal for industrial, automation, aerospace, and HVAC applications.
NVENT HOFFMAN TFP61UL12 Enclosure Cooling Fan Specifications:
- Rated Voltage: 115 VAC, 230 VAC
- Frequency: 50/60 Hz
- Maximum Operating Temperature: 158°F / 70°C
- Free Airflow: 45 CFM (76 m³/hr) to 215 CFM (365 m³/hr)
- Noise Level: 65-77 dBA
- Dimensions (H x W x D): 6.29 x 7.37 x 2.65 inches / 160 x 187 x 67 mm
- Cutout Dimensions (H x W): 5.66 x 5.66 inches / 144 x 144 mm
- Weight: 4.2 lbs / 1.90 kg
- Impeller Material: Polycarbonate
- Mounting Hardware: Provided
- Filters: Disposable Type 12, optional washable aluminum filters
- Protection: Thermally protected fan, dynamically balanced impeller
- Application: Enclosure cooling, industrial automation, process control, HVAC
- Continuous operation: 50,000 hours with periodic maintenance
- Housing: Black ABS composite grille, optional stainless steel
Buy the Buy Pentair TFP61UL12 Part Number TFP61UL12 Online
Enhance your equipment’s cooling efficiency with the Pentair TFP61UL12 enclosure fan. Designed for limited space, it features a durable ABS grille, disposable Type 12 filter, and a polycarbonate impeller for quiet, reliable operation up to 50,000 hours. Suitable for industrial, automation, HVAC, and process control applications, this fan is easy to install with all necessary hardware included. Maintain optimal enclosure temperatures with minimal maintenance, ensuring your systems run smoothly and efficiently for extended periods.
Buy Pentair TFP61UL12 now and experience reliable, long-lasting cooling with easy installation and maintenance for your industrial and automation needs.
