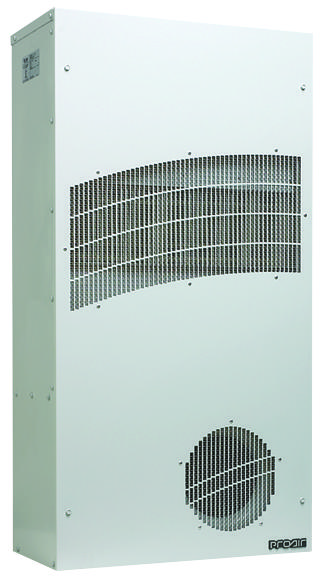

NVENT HOFFMAN TX231448100 Sealed Enclosure Cooling
The product features sealed enclosure cooling heat exchangers designed for industrial applications like telecom shelters, outdoor cabinets, and equipment enclosures. It includes various models with aluminum core for high efficiency, compatible with 24 VDC, 48 VDC, 115 VAC, and 230 VAC power supplies. These units are UL/cUL listed, CE, GOST, Telcordia GR-487 capable, and have operating temperature ranges from -40°F/-40°C to 149°F/65°C. Each unit is constructed with rugged sheet metal, featuring optional stainless steel finishes, easy mount flanges, and low-maintenance filterless design for extreme conditions.
NVENT HOFFMAN TX231448100 Sealed Enclosure Cooling Specifications:
- Operating Temperature Range: -40°F/-40°C to 149°F/65°C
- Material: Mild steel sheet metal, optional stainless steel finishes
- Finish: RAL 7035 light-gray, semi-textured powder-coat paint
- Airflow at 0 Static Pressure (External loop, 60Hz): 69/117 CFM / m³/hr for TX23 models
- Airflow at 0 Static Pressure (External loop, 60Hz): 263/447 CFM / m³/hr for TX52 models
- Rated Voltage: 24 VDC, 48 VDC, 115 VAC, 230 VAC
- Power Consumption: 14 W/°F (25 W/°C) for TX23, 83 W/°F (150 W/°C) for TX52, 28 W/°F (50 W/°C) for TX33, 56 W/°F (100 W/°C) for TX38
- Agency Approvals: UL, cUL, CE, GOST, Telcordia GR-487
- Dimensions (HxWxD): 23/12/7.1 inches (584/304.8/180.3 mm) for TX23, 52/19.7/10.1 inches (1320.8/500/256.5 mm) for TX52, 38/15.7/10.1 inches (965.2/398.8/256.5 mm) for TX33, 38/15.7/10.1 inches (965.2/398.8/256.5 mm) for TX38
- Weight: 30/13.6 lbs (13.6 kg) for TX23, 100/45.3 lbs (45.3 kg) for TX52, 45/20.4 lbs (20.4 kg) for TX33, 66/30 lbs (30 kg) for TX38
- Surface or recessed mount capable, rugged design with low-noise variable speed blowers available, corrosion-resistant options, and optional stainless steel finishes.
Buy the Buy Pentair Sealed Enclosure Cooling Part Number TX231448100 Online
Discover the durability and efficiency of Pentair sealed enclosure cooling heat exchangers, perfect for outdoor cabinets, telecom shelters, and harsh environments. Engineered with a high-performance aluminum core, these units are UL/cUL listed, CE, GOST, and Telcordia GR-487 capable, ensuring quality and compliance. Designed for easy installation with mounting flanges and minimal maintenance thanks to a filterless, corrosion-resistant structure. With models suited for various voltages and extreme temperature ranges, they provide dependable protection for sensitive electronic equipment in demanding conditions. Purchase online now to ensure your systems operate reliably in any environment.
Buy Pentair TX231448100 now and experience unmatched reliability and performance in rugged outdoor environments.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN TX231448100?
You can click on the BUY or RFQ button to purchase TX231448100 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part TX231448100?
You can download the TX231448100 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of TX231448100?
NVENT HOFFMAN
