NVENT HOFFMAN WSSOK2SS Wall-Mount Disconnect Enclosure
The product is a stainless steel wall-mount preferred-cutout disconnect enclosure designed for industrial environments requiring washdown capabilities. Made of 14 gauge Type 304 stainless steel, it features seamless welds, sloped top and door edges, bullet-style hinges, and gasket sealing for durability and washdown runoff. It includes mounting provisions, bonding, grounding, and hardware kits for easy installation. Suitable for use with disconnect switches and circuit breakers up to 200A or 400A, it meets UL, cUL, NSF, NEMA, and IEC standards, ensuring compliance and robust operational protection in harsh environments.
NVENT HOFFMAN WSSOK2SS Wall-Mount Disconnect Enclosure Specifications:
- Material: 14 gauge Type 304 stainless steel
- Seams: Continuously welded and ground smooth
- Hinges: Smooth, shielded bullet-style, lift-off design
- Door Opening: 170 degrees
- Top Slope: 20-degree sloped top and edges
- Finish: #4 brushed stainless steel
- Bonding: Provision on door and grounding stud on body
- Dimensions: Various sizes, e.g., 24x25x8 inches, 36x31x8 inches, 48x37x16 inches

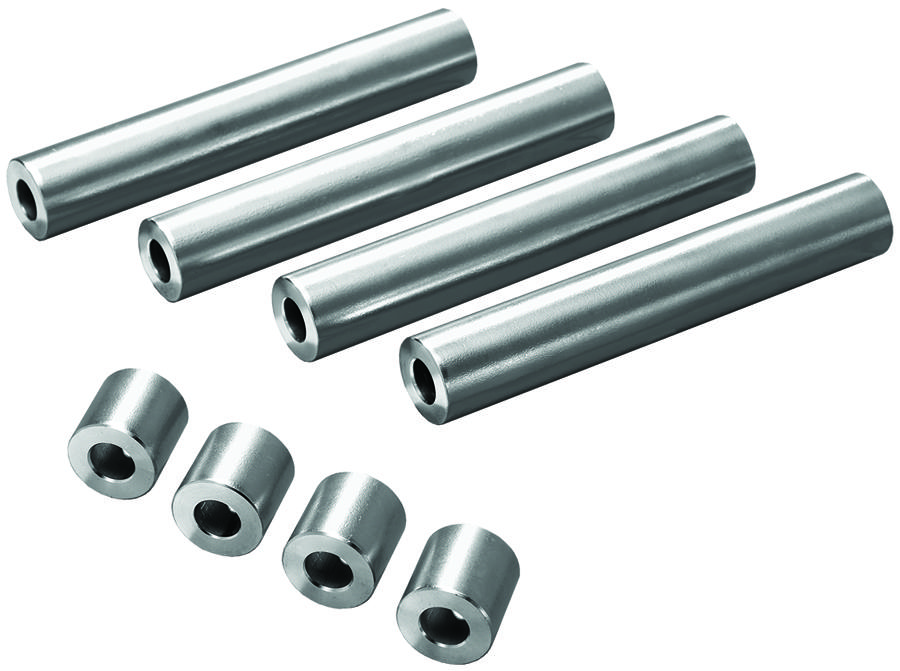

- Stand-Offs: Provide space for washdown, available in 1, 2, 4, 6-inch options
- Stand-off Kit: Includes four stainless steel brackets with sealing washers
- Hardware: Includes mounting nuts, grounding hardware, sealing washers
- Standards: UL 508A, cUL, NSF 169, NEMA Type 4X, 3R, IEC 60529 IP66
- Application: Designed for disconnect switches and circuit breakers up to 200A or 400A in washdown production environments
Buy the PENTAIR WATERSHED™ DISCONNECT – Reliable Stainless Steel Enclosure for Industrial Applications
Purchase the PENTAIR WATERSHED wall-mount disconnect enclosure today for superior corrosion resistance, washdown compliance, and easy installation. Crafted from durable Type 304 stainless steel with seamless welds, this enclosure features a sloped top for runoff, shielded hinges, gasket sealing, and provisions for grounding and mounting. Suitable for industrial applications including food and beverage production, it meets UL, cUL, NSF, and NEMA standards. Ensure your equipment remains protected from harsh conditions by ordering this high-quality enclosure online for swift delivery and reliable performance.
Buy PENTAIR WATERSHED™ DISCONNECT enclosure now and ensure durable, compliant protection for your washdown environments.
